# 2019/0415/前端JQ-Ajax+JSON&後端ADO建置、主板頁面概念控制項、Bootstrap演示

前端程式設計最後一PART&#x20;( AJAX JSON )
-------------------

第29有試過抓取GOOGLE API拋出來的資料 ( 前五筆免前

第三方api

Application Interface 程式用的介面

Ui user Interface

為了要跨裝置，不像以前單純

Client -> api -> server 完全分開

無論是增刪修

與後端溝通必須要有個標準

但前端設備太多了

所以需要api做整合

以前用 xml soap

現在改為 json

### 範例 : 農委會開放平台&#xD;

更新速度非常快

資料格式非常多 json csv excel word xml

以後的資料不一定都跟資料庫溝通

有種方式為 nosql

有資料介接說明文件甚至有版本

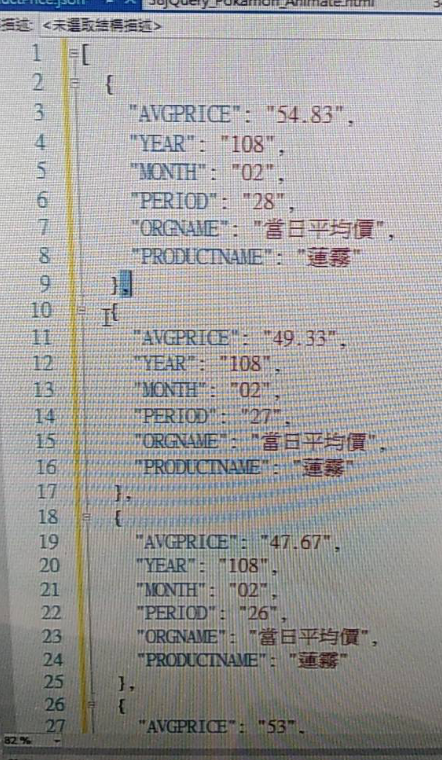

json不管是什麼資料都必須要放在雙引號內

ctrl c 回vs

前端專案增加新項目ｊｓｏｎ檔案

Ctrl v 就很清楚結構

其實就是一堆的集合\[ ]

每筆資料{ }

“Key”:”value”, 表示法

![](/files/-LcVcvi1NFAnkLSBKTE7)

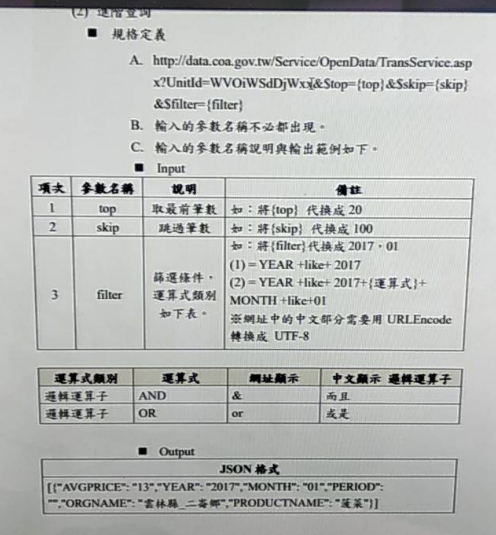

#### 利用ｕｒｌ取資料&#xD;

就想像把ａｐｉ想像為函數

必須要有技術文件才看得懂設計

![](/files/-LcVd1SzHUhXUOAXuqKg)

第一ｈｔｍｌ

第二ｊｑ

第三ｄｏｍ

以往ｊｓ寫ａｊａｘ非常麻煩

現在利用ｊｑ來寫

#### ｊｑ寫ａｊａｘ&#xD;

#### 利用ａｊａｘ方法　跟　ａｐｉ要資料&#xD;

＄.ajax(); 方法

Ajax->局部更新

Ux Experience

不用整個網頁做ｐｏｓｔ也可以向伺服器提出要資料

ｔｙｐｅ：

ｈｔｔｐ有兩種傳遞資料方式ｇｅｔ　ｐｏｓｔ

ｕｒｌ：

ｊｓｏｎ位址，（像是背景資料非同步有拿到資料或沒拿到都不會看到報錯

ｆｏｒｍａｔ：

指定ａｐｉ拋回之資料格式，以往預設是ｘｍｌ

ｓｕｃｃｅｓｓ：

成功抓取資料的話執行後續函式

ｅｒｒｏｒ：

失敗了執行後續函式

#### 將資料顯示（ｄｏｍ資料）&#xD;

可以換顯示順序或顯示筆數或樣式

### 題外話：&#xD;

表格不適合響應式，卡片才適合。

不知道幾筆所以要用迴圈控制

順道知道ｈｔｍｌ５語意ｔｈｅａｄ、ｔｂｏｄｙ

傳入ｄａｔａ（ｊｓｏｎ資料）參數進函數使用

欄位位址．欄位名稱

ｄａｔａ［ｉ］．ＡＶＧＰＲＩＣＥ

ＰＲＧＲＡＳ?? preload??　有時筆數資料太多　必須讓使用者知道正在讀取

```
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8" />
    <title></title>
</head>
<body>
    <table id="tb1" border="1">

    </table>


    <script src="Scripts/jquery-3.3.1.min.js"></script>
    <script>
        $.ajax({
            type: 'GET',
            url: 'ProductPrice.json',
            format: 'json',
            success: function (data) {
                //alert('Success!!');
                $('#tb1').append("<thead><tr><th>品項名稱</th><th>報價</th><th>年</th><th>月</th><th>旬</th><th>鄉鎮農會</th></tr></thead>");
                $('#tb1').append("<tboday>");
                for (var i = 0; i < data.length; i++) {
                    $('#tb1').append("<tr><th>" + data[i].PRODUCTNAME + "</th><th>" + data[i].AVGPRICE + "</th><th>" + data[i].YEAR + "</th><th>" + data[i].MONTH + "</th><th>" + data[i].PERIOD + "</th><th>" + data[i].ORGNAME +"</th></tr>");

                }
                $('#tb1').append("</tboday>");

            },
            error: function () {
                alert('Error!!');
            }

        });


    </script>
</body>
</html>

```

![](/files/-Ld8YYzRBYpYVAK0B_FB)

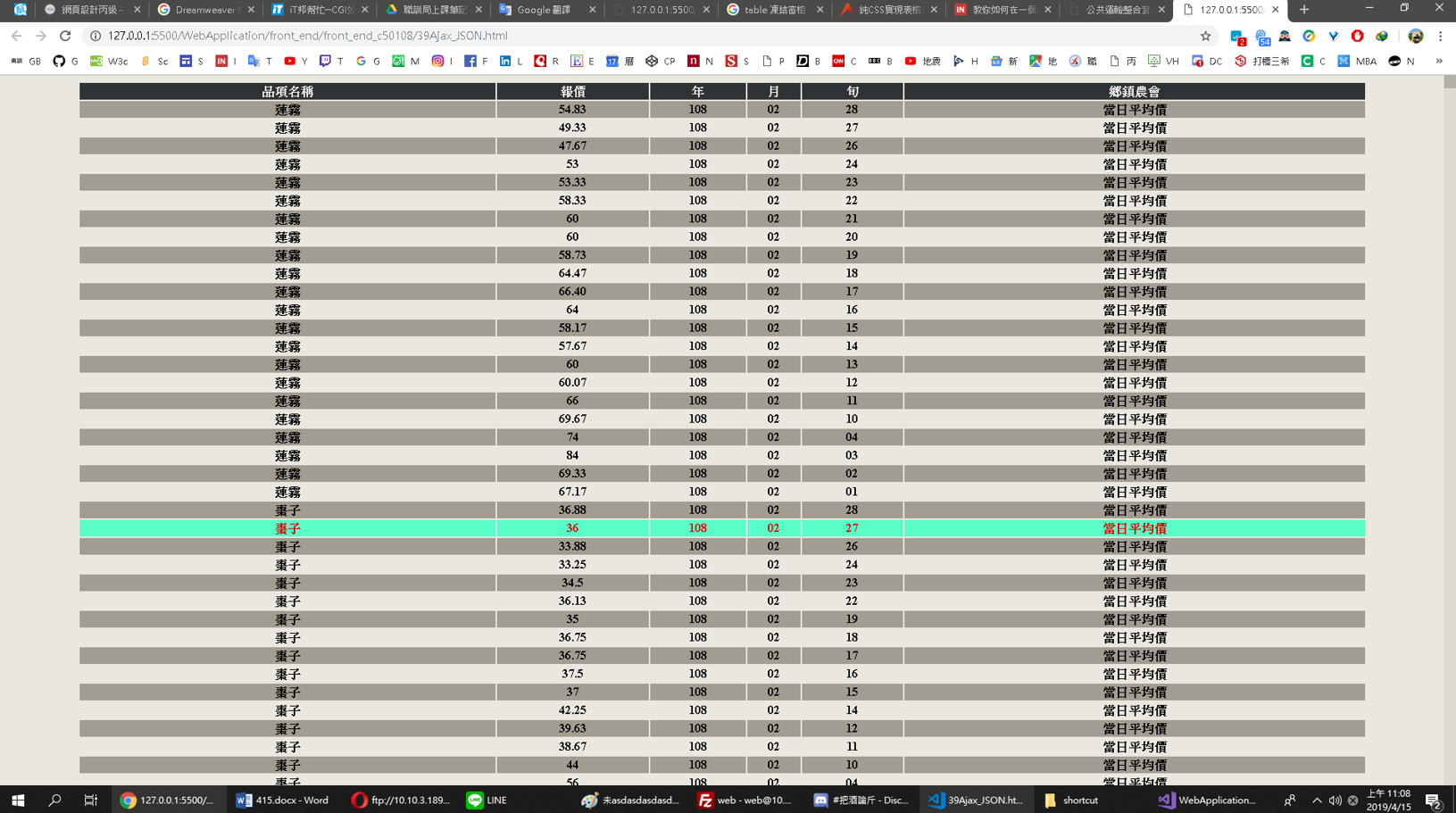

加上ｃｓｓ

```
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8" />
    <title></title>
    <style>
        #tb1{
            width:90%;
            margin:auto;
        }
        #tb1 thead tr{
            background-color:#383838;
            color:white;
        }

            #tb1 tbody tr:nth-child(2n+1) {
                background-color:#acacac;
            }
            #tb1 tbody tr:nth-child(2n) {
                background-color:white;
            }

            #tb1 tbody tr:hover {
                background-color:aquamarine;
                color:red;
                border:5px solid black;
            }
    </style>
</head>
<body>
    <table id="tb1">

    </table>


    <script src="Scripts/jquery-3.3.1.min.js"></script>
    <script>

        $.ajax({
            type: 'GET',
            url: 'ProductPrice.json',
            format: 'json',
            success: function (data) {
                //alert('Success!!');
                $('#tb1').append("<thead><tr><th>品項名稱</th><th>報價</th><th>年</th><th>月</th><th>旬</th><th>鄉鎮農會</th></tr></thead>");
                $('#tb1').append("<tbody>");
                for (var i = 0; i < data.length; i++) {
                    $('#tb1').append("<tr><th>" + data[i].PRODUCTNAME + "</th><th>" + data[i].AVGPRICE + "</th><th>" + data[i].YEAR + "</th><th>" + data[i].MONTH + "</th><th>" + data[i].PERIOD + "</th><th>" + data[i].ORGNAME +"</th></tr>");

                }
                $('#tb1').append("</tbody>");

            },
            error: function () {
                alert('Error!!');
            }

        });


    </script>
</body>
</html>

```

![](/files/-Ld8YYzSSalMgXHHwySZ)

#### 即時資料&#xD;

{% embed url="<https://ptx.transportdata.tw/PTX>" %}

ＸＭＬ都是標籤比較笨重

資料介接即時資料

ｈｔｔｐｓ通常就能直接介接ｓｓｌ編碼過

ｘｍｌ　ｊｓｏｎ　容易被輕易擷取

{% embed url="<https://ptx.transportdata.tw/MOTC/Swagger>" %}

階層式資料

{% embed url="<https://ptx.transportdata.tw/PTX/Service?Transportation=%E8%87%BA%E9%90%B5>" %}

要自己去想關聯

用ｉｄ就可以互相查詢

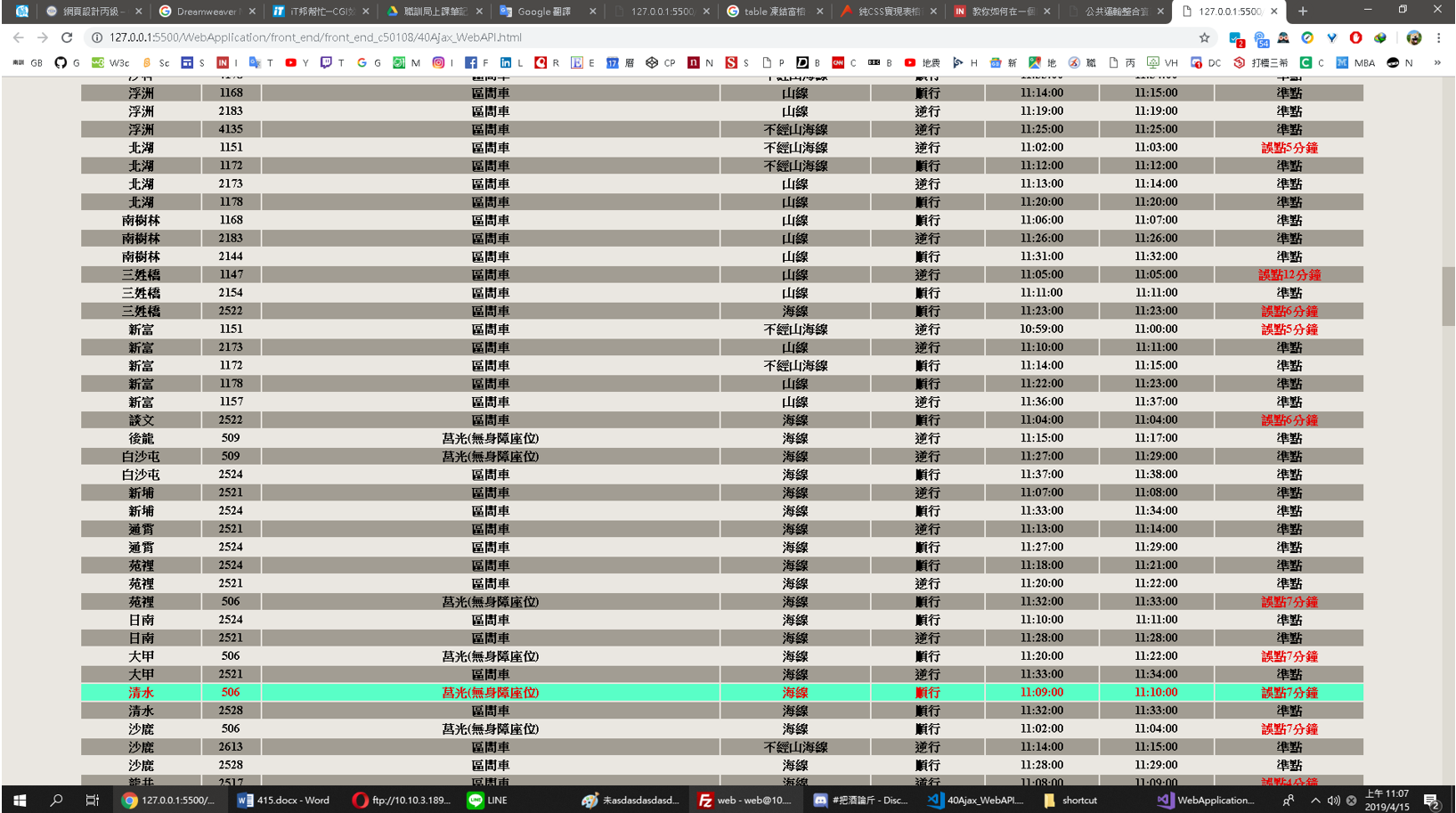

#### ｊｓｏｎ如果要顯示第二層的資料的話直接打欄位就好（第二層有兩個欄位）&#xD;

位址．第一層欄位．第二層欄位

邏輯：

１準點或誤點，如果誤點則顯示誤點時間多久

２順行逆行０１判斷

```
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8" />
    <title></title>
    <style>
        #tb1{
            width:90%;
            margin:auto;
        }
        #tb1 thead tr{
            background-color:#383838;
            color:white;
        }

            #tb1 tbody tr:nth-child(2n+1) {
                background-color:#acacac;
            }
            #tb1 tbody tr:nth-child(2n) {
                background-color:white;
            }

            #tb1 tbody tr:hover {
           background-color:aquamarine;
                color:red;
                border:5px solid black;
            }
    </style>
</head>
<body>
    <table id="tb1">

    </table>


    <script src="Scripts/jquery-3.3.1.min.js"></script>
    <script>

        function updateData() {
            $.ajax({
                type: 'GET',
                url: 'https://ptx.transportdata.tw/MOTC/v2/Rail/TRA/LiveBoard?$format=JSON',
                format: 'json',
                success: function (data) {
                    //alert(data.length);
                    var TripLine;
                    var DelayTime;
                    var Direction;
                    $('#tb1').append("<thead><tr><td>站名</td><td>車次</td><td>車種</td><td>山/海線</td><td>行車方向</td><td>到站時間</td><td>發車時間</td><td>誤點時間</td></tr></thead>");
                    $('#tb1').append("<tbody>");
                    for (var i = 0; i < data.length; i++) {
                            switch (data[i].TripLine) {
                                case 0:
                                    TripLine = "不經山海線";
                                    break;
                                case 1:
                                    TripLine = "山線";
                                    break;
                                case 2:
                                    TripLine = "海線";
                                    break;
                        }
                        DelayTime = data[i].DelayTime == 0 ? "準點" : "<span style='color:red'>誤點" + data[i].DelayTime+"分鐘</span>"
                        Direction = data[i].Direction == 0 ? "順行" : "逆行";


                        $('#tb1').append("<tr><th>" + data[i].StationName.Zh_tw + "</th><th>" + data[i].TrainNo + "</th><th>" + data[i].TrainTypeName.Zh_tw + "</th><th>" + TripLine + "</th><th>" + Direction + "</th><th>" + data[i].ScheduledArrivalTime + "</th><th>" + data[i].ScheduledDepartureTime + "</th><th>" + DelayTime + "</th></tr>");

                    }
                    $('#tb1').append("</tbody>");

                },
                error: function () {
                    alert('Error!!');
                }

            });
            setTimeout("updateData()",120000);
        }
        updateData();
    </script>
</body>
</html>

```

![](/files/-Ld8YYzTAbYjsj0HoliD)

#### ＪＳＯＮ階層結構

```
{
"StationID": "1001",
"StationName": { "Zh_tw": "基隆", "En": "Keelung" },
"TrainNo": "2134",
"Direction": 0,
"TrainTypeID": "1131",
"TrainTypeCode": "6",
"TrainTypeName": { "Zh_tw": "區間車", "En": "Local Train" },
"TripLine": 1,
"EndingStationID": "1001",
"EndingStationName": { "Zh_tw": "基隆", "En": "Keelung" }, "ScheduledArrivalTime": "11:38:00",
"ScheduledDepartureTime": "11:40:00",
"DelayTime": 0,
"SrcUpdateTime": "2019-04-15T11:16:19+08:00",
"UpdateTime": "2019-04-15T11:17:20+08:00"
},

```

### 範例 : 關鍵字查詢 ＡＰＩ&#xD;

兩種方式

1．	藉由ＵＲＬ去ＡＰＩ要關鍵資料顯示（要對方ＡＰＩ有寫查詢功能

2．	資料全部抓回來後由程式判別顯示

身為程式設計師就是要抓回來寫邏輯判斷

清空ＴＡＢＬＥＤ讓資料不會附加上去

ＳＥＴＩＮＴＥＲＶＡＬ每隔多少區間呼叫一次

ＳＥＴＴＩＭＥＯＵＴ差別是第二種一開始必須有人呼叫一次

```
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8" />
    <title></title>
    <style>
        #tb1{
            width:90%;
            margin:auto;
        }
        #tb1 thead tr{
            background-color:#383838;
            color:white;
        }

            #tb1 tbody tr:nth-child(2n+1) {
                background-color:#acacac;
            }
            #tb1 tbody tr:nth-child(2n) {
                background-color:white;
            }

            #tb1 tbody tr:hover {
               background-color:aquamarine;
                color:red;
                border:5px solid black;
            }
    </style>
</head>
<body>
    <input id="StationName" type="text" /><input id="Button1" type="button" value="查詢" />
    <table id="tb1">

    </table>


    <script src="Scripts/jquery-3.3.1.min.js"></script>
    <script>
        var StationName;
        $('#Button1').click(function () {
            StationName = $('#StationName').val();
            updateData(StationName);
        });

        setInterval(function () { updateData($('#StationName').val()) }, 120000);

        function updateData(StationName) {
            $('#tb1').empty();
            $.ajax({
                type: 'GET',
                url: 'https://ptx.transportdata.tw/MOTC/v2/Rail/TRA/LiveBoard?$format=JSON',
                format: 'json',
                success: function (data) {
                    //alert(data.length);
                    var TripLine;
                    var DelayTime;
                    var Direction;
                    $('#tb1').append("<thead><tr><td>站名</td><td>車次</td><td>車種</td><td>山/海線</td><td>行車方向</td><td>到站時間</td><td>發車時間</td><td>誤點時間</td></tr></thead>");
                    $('#tb1').append("<tbody>");
                    for (var i = 0; i < data.length; i++) {
                        if (data[i].StationName.Zh_tw == StationName) {
                            switch (data[i].TripLine) {
                                case 0:
                                    TripLine = "不經山海線";
                                    break;
                                case 1:
                                    TripLine = "山線";
                                    break;
                                case 2:
                                    TripLine = "海線";
                                    break;
                            }
                            DelayTime = data[i].DelayTime == 0 ? "準點" : "<span style='color:red'>誤點" + data[i].DelayTime + "分鐘</span>"
                            Direction = data[i].Direction == 0 ? "順行" : "逆行";


                            $('#tb1').append("<tr><th>" + data[i].StationName.Zh_tw + "</th><th>" + data[i].TrainNo + "</th><th>" + data[i].TrainTypeName.Zh_tw + "</th><th>" + TripLine + "</th><th>" + Direction + "</th><th>" + data[i].ScheduledArrivalTime + "</th><th>" + data[i].ScheduledDepartureTime + "</th><th>" + DelayTime + "</th></tr>");
                        }
                    }
                    $('#tb1').append("</tbody>");

                },
                error: function () {
                    alert('Error!!');
                }

            });

        }
        //updateData();
    </script>
</body>
</html>

```

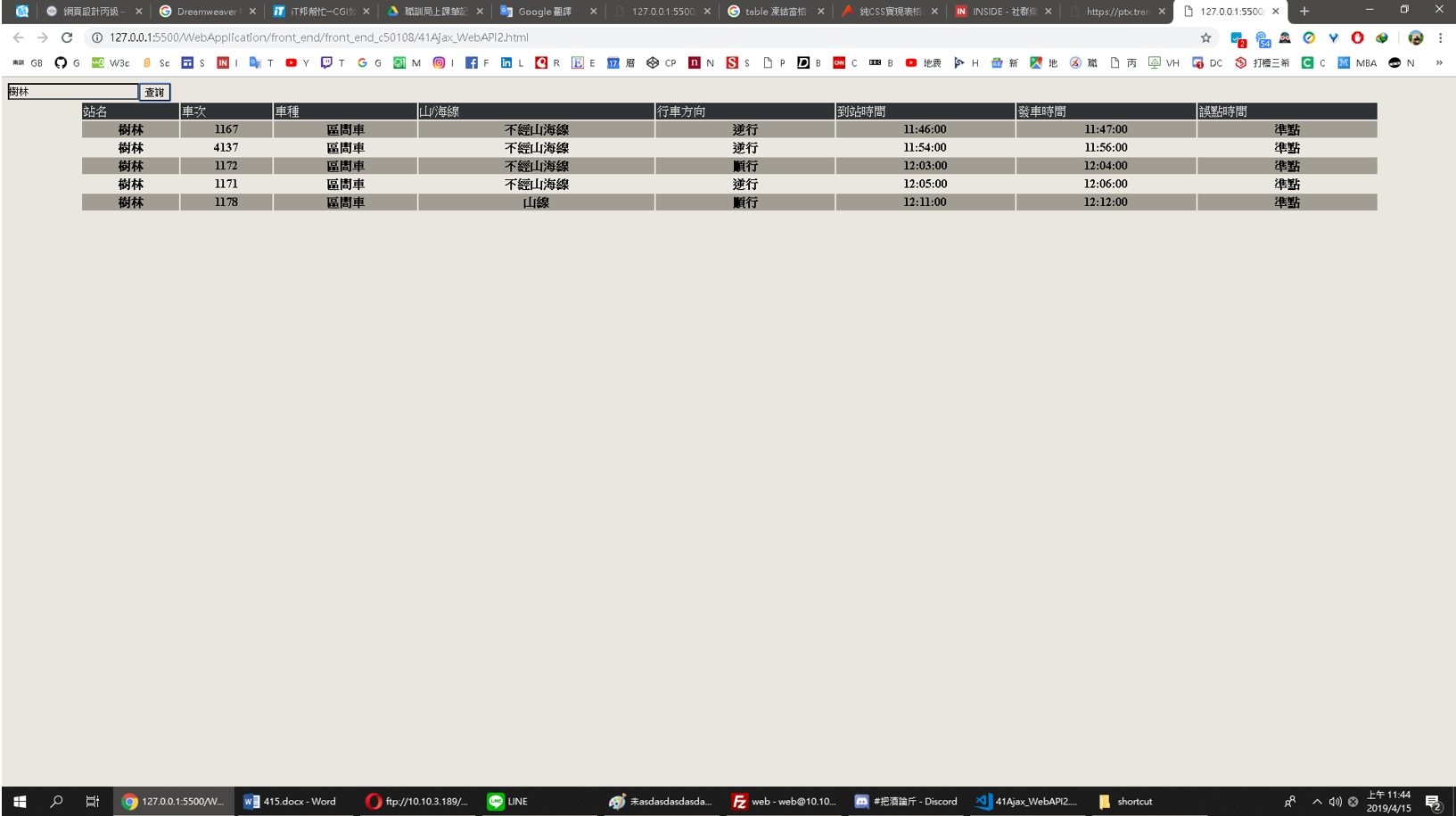

![](/files/-Ld8YYzUdXHr9EGGX_7a)

### 補充&#xD;

ＰＴＸ有ＧＩＴＨＵＢ／ＧＩＴＢＯＯＫ等開放服務

<https://ptx.transportdata.tw/PTX/>

<https://github.com/ptxmotc/Sample-code>

<https://ptxmotc.gitbooks.io/ptx-api-documentation/content/>

示範應用

<https://ptx.transportdata.tw/PTX/Demo/Example>

其實程式就是這個樣子做出來！

ＡＰＩ串接的程式，客戶端可以直接執行，但是要有網路。

下午後端&#x20;webform 準備踏入 MVC
----------------------

前段課程如果要刪除資料 實務上會一起刪除 ( 刪除明細後再刪除主要資料&#x20;)

同一個功能無法用ｗｅｂｆｏｍｅ轉ＭＶＣ

但能夠放在同一個專案裡面

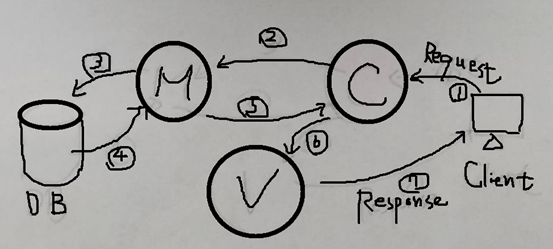

#### &#xD;ＭＶＣ７個步驟但是是最多不是每次都７個

![](/files/-LcVffQ-Zwla5CgLyTZ4)

ＷｅｂＦｏｒｍ－＞ＭＶＣ

要在ＷｅｂＦｏｒｍ內建立Ｍｏｄｅｌ

藉由Ｅｎｔｉｔｙ　Ｆｒａｍｅｗｏｒｋ

直接操作資料庫

之前有學過（ＤａｔａＳｏｕｃｅＣｏｎｔｒｏｌ、ＡＤＯ．ｎｅｔ

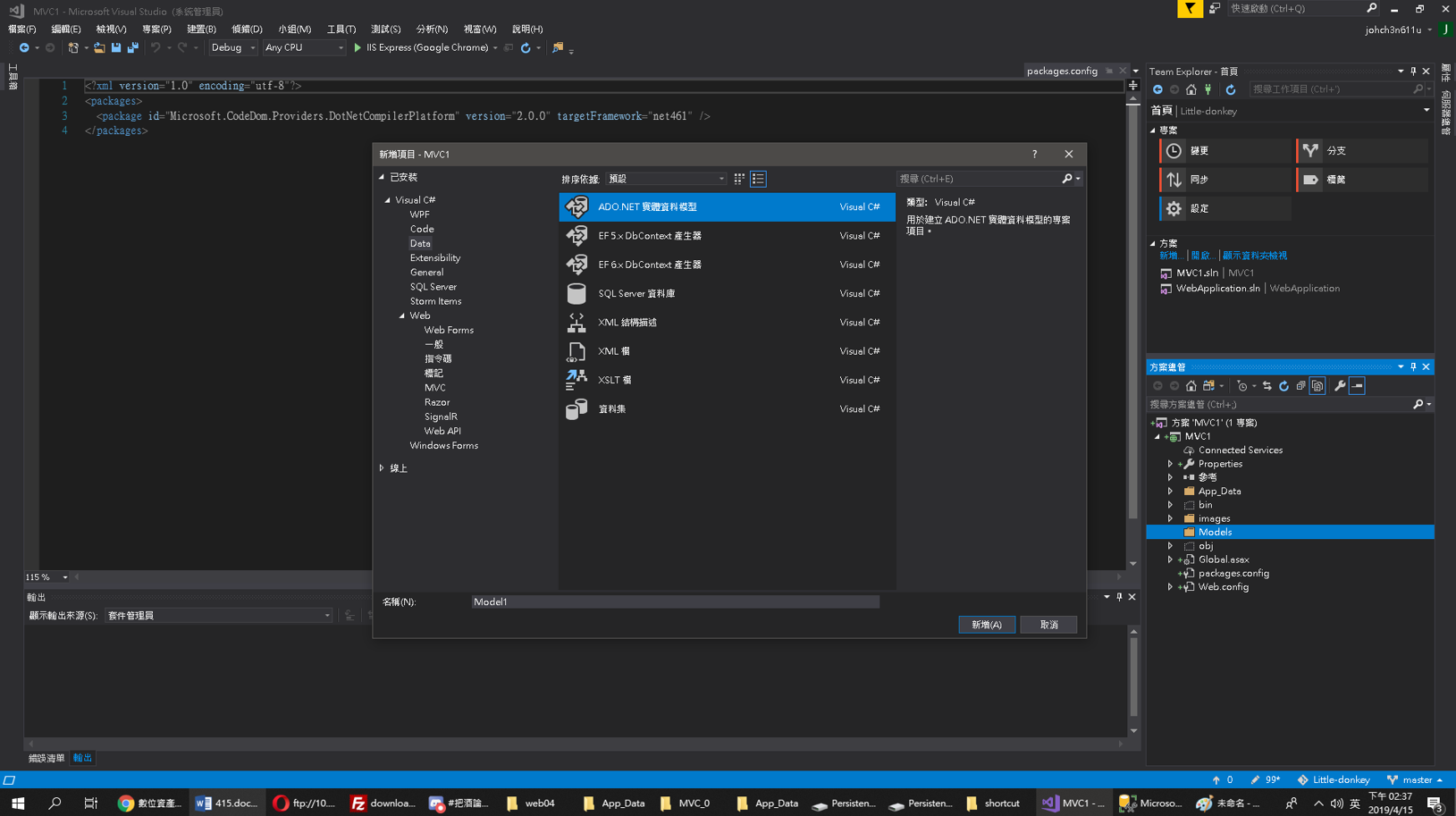

以下使用 空白專案同時建置 使用ADO.net串接資料庫

演示 Ｗｅｂｆｏｒｍ　變　ＭＶＣ

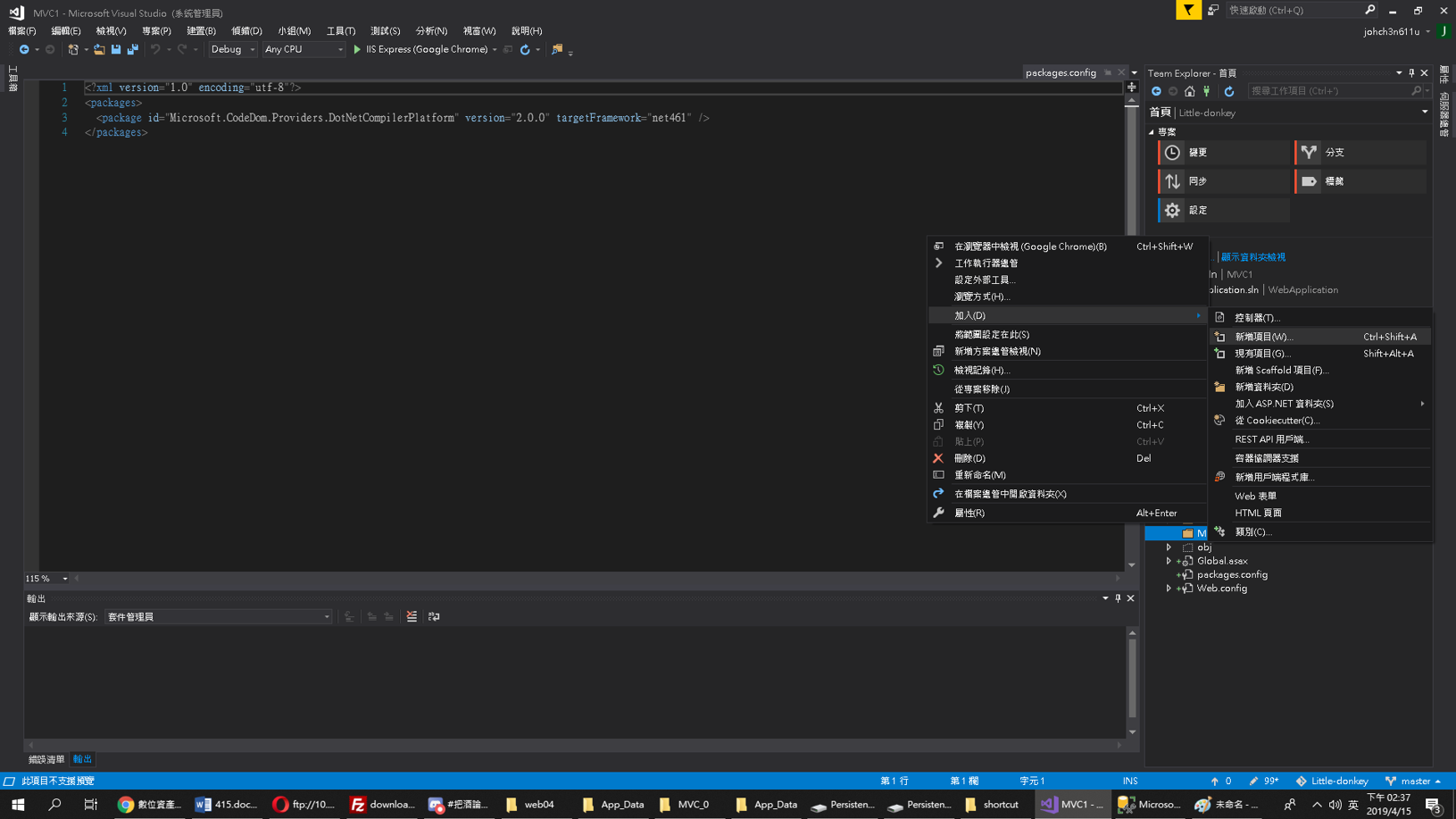

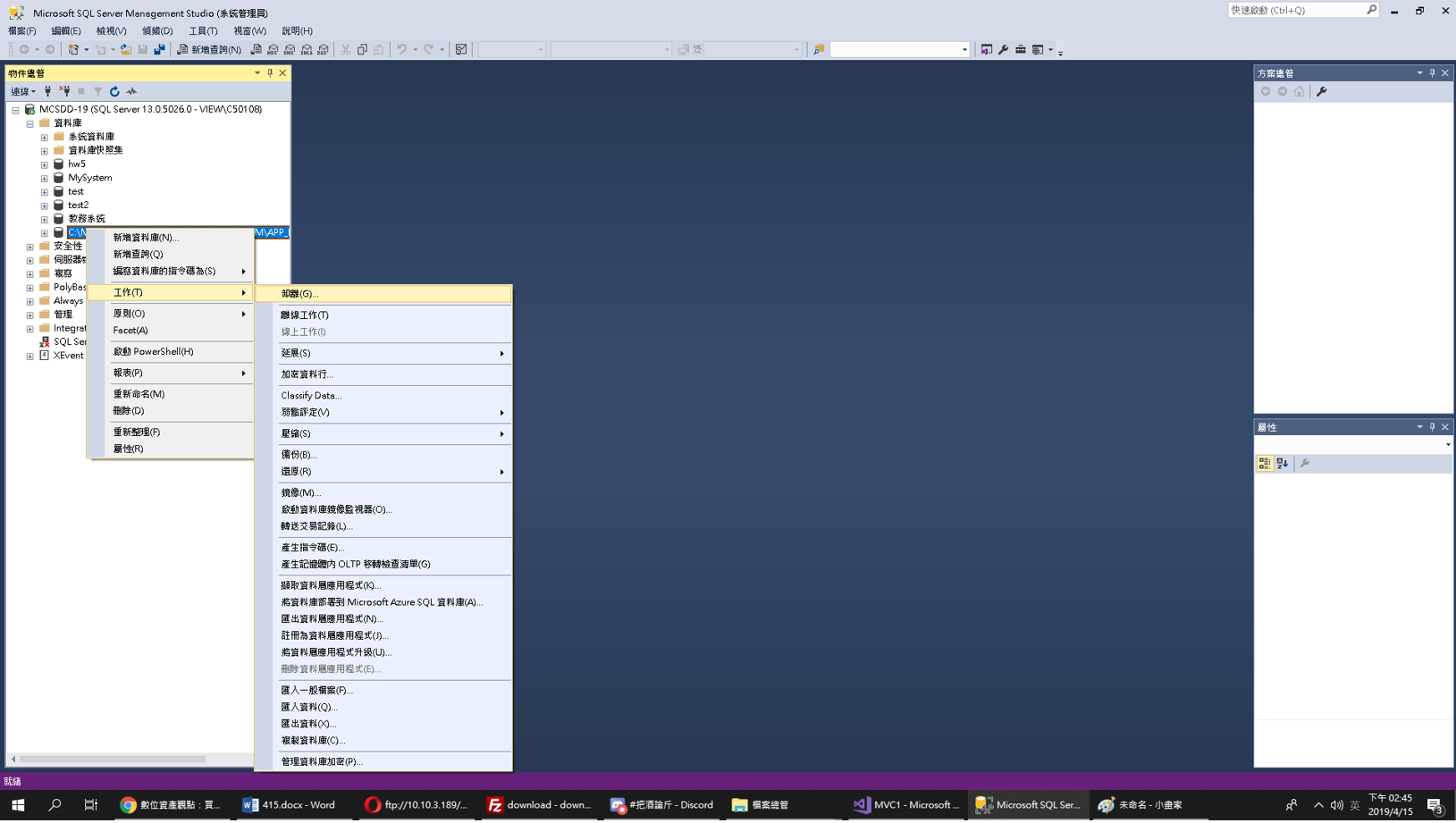

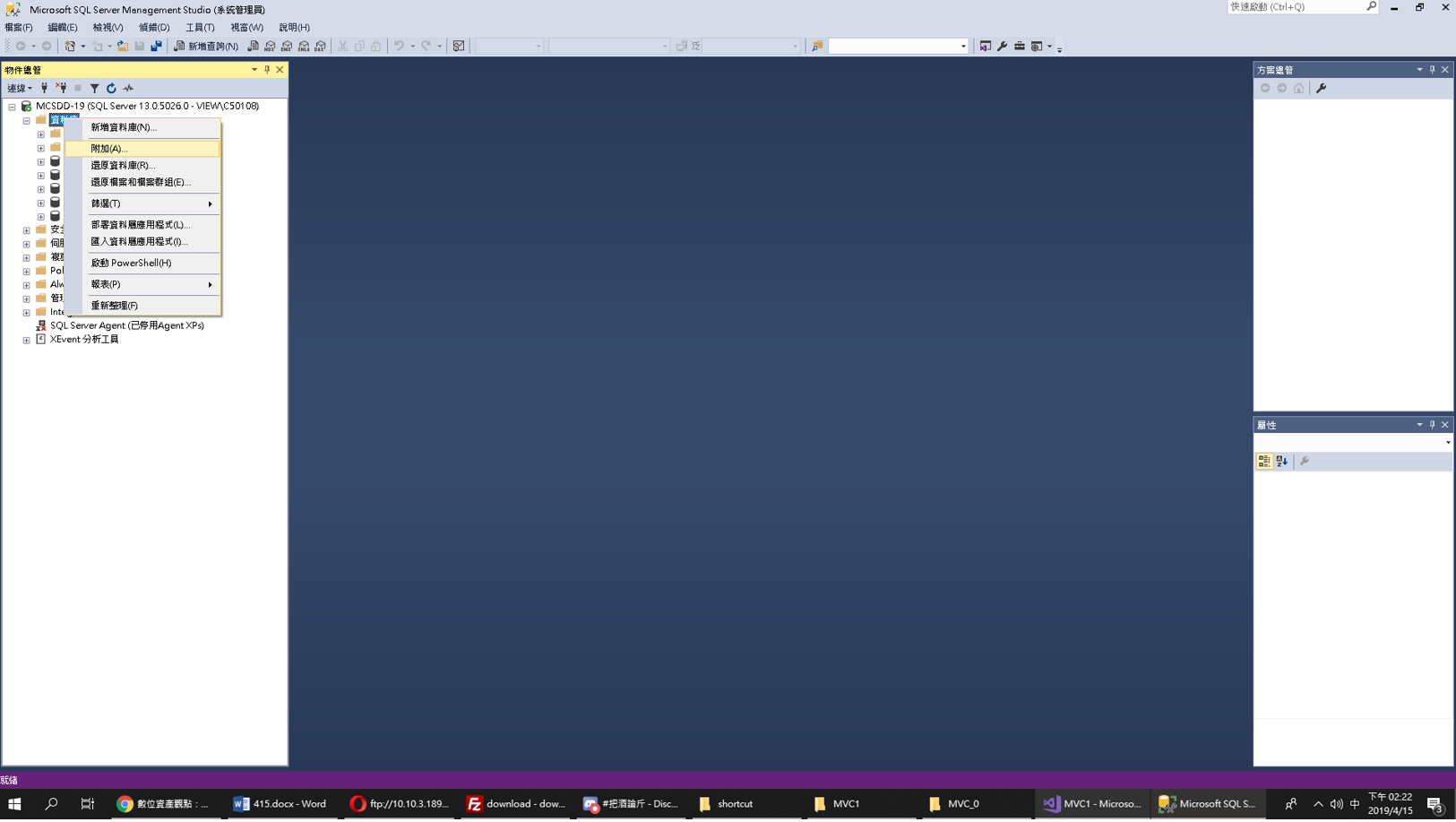

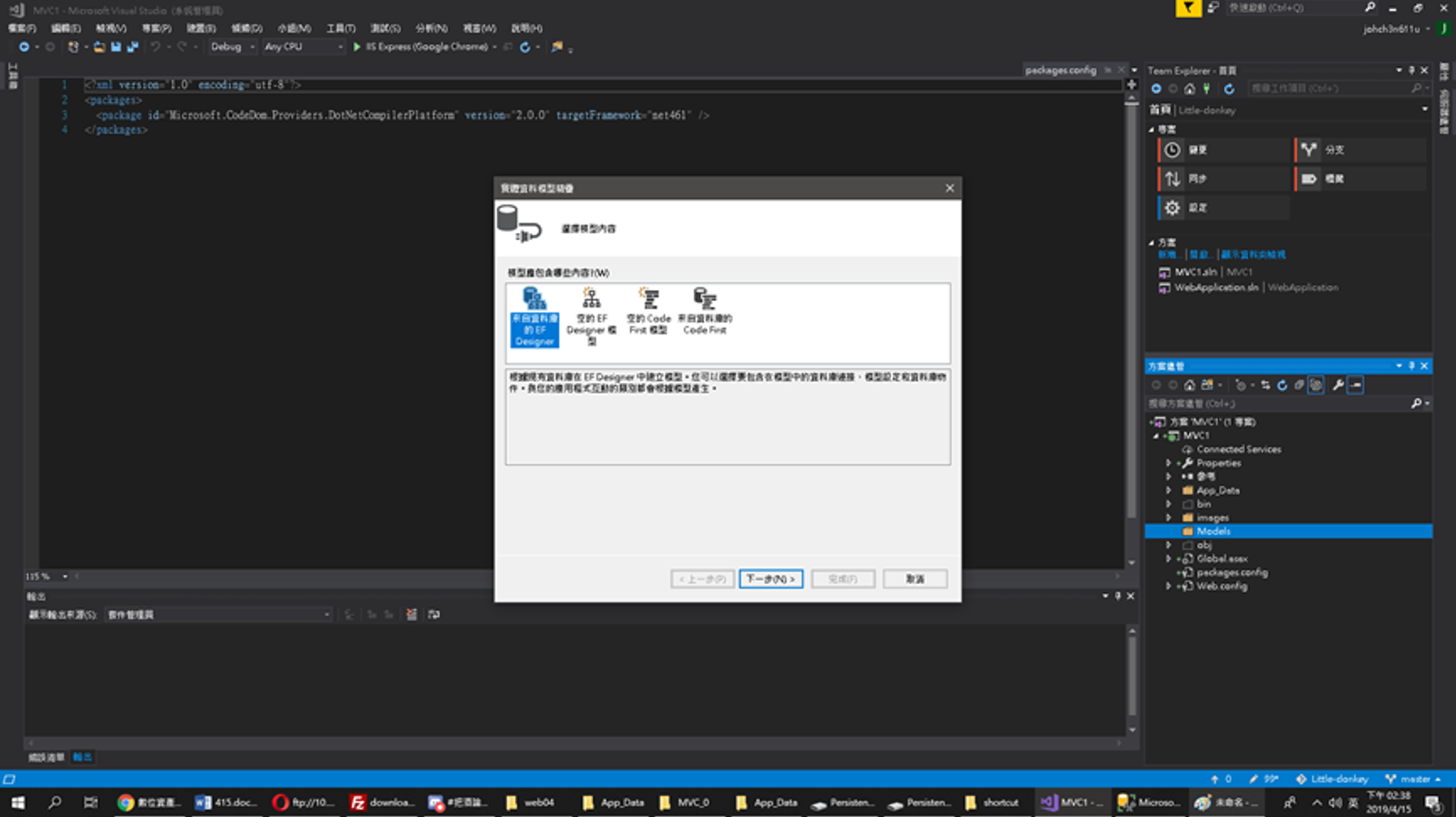

### 建置環境&#xD;

![](/files/-Ld8YYzVl5yUP7j-p7Kd)

![](/files/-Ld8YYzWeI4J1K0-uv13)

![](/files/-Ld8YYzXVpFTgQrkbmL3)

![](/files/-Ld8YYzYK5yqv8iBH8cq)

#### MVC

１模型從資料庫來

２空的要自己畫模型

３沒有資料庫也沒有模型但用編程方式建立模型產生資料庫？？

４利用現有資料庫建立ｃｏｄｅ產生模型

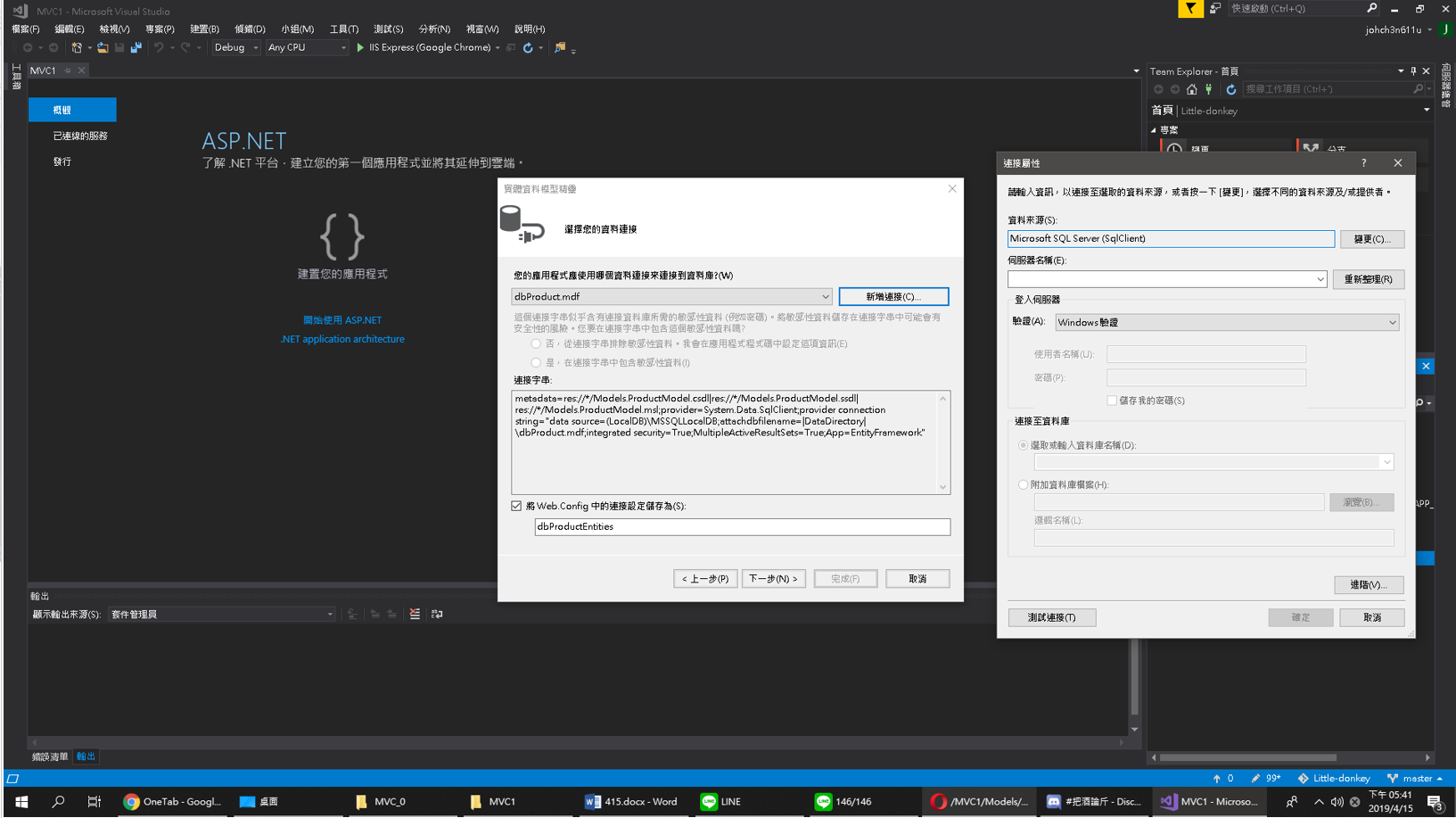

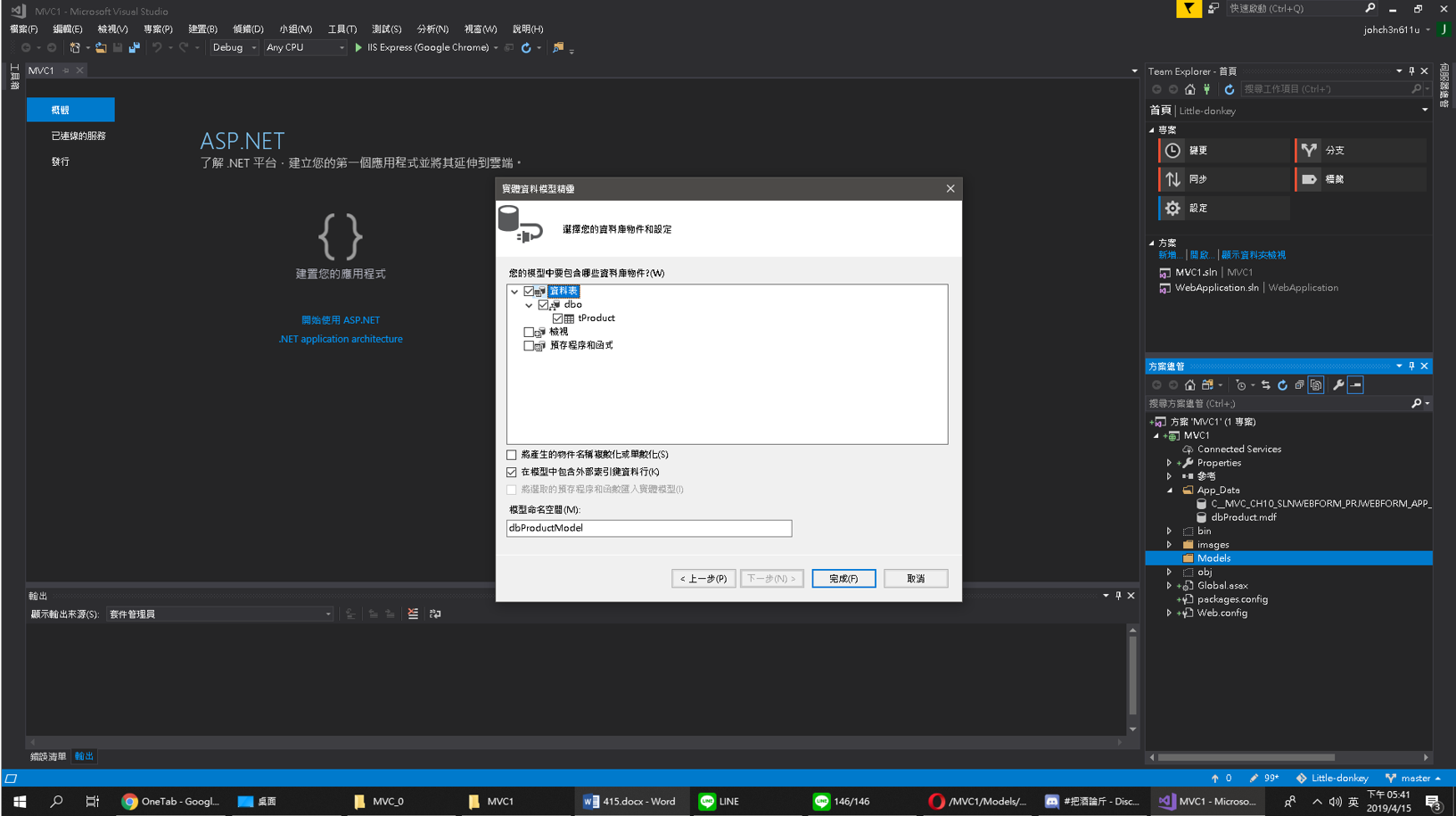

Webfome 透過 Ｅｎｔｉｔｙ做新刪修

Gridview 讀資料 現在開始讀寫都不會用到sql而是entity

![](/files/-Ld8YYzZtB5SuoxkeWoT)

![](/files/-Ld8YYz_ppgZ7FfbtMHO)

![](/files/-Ld8YYza6E2bFkr9HIOY)

![](/files/-Ld8YYzbdeiV0eTR9BX-)

以上截圖僅為參考需要考慮其原理更改自訂id等等…

如果有問題最好直接整個方案刪除一步步重來

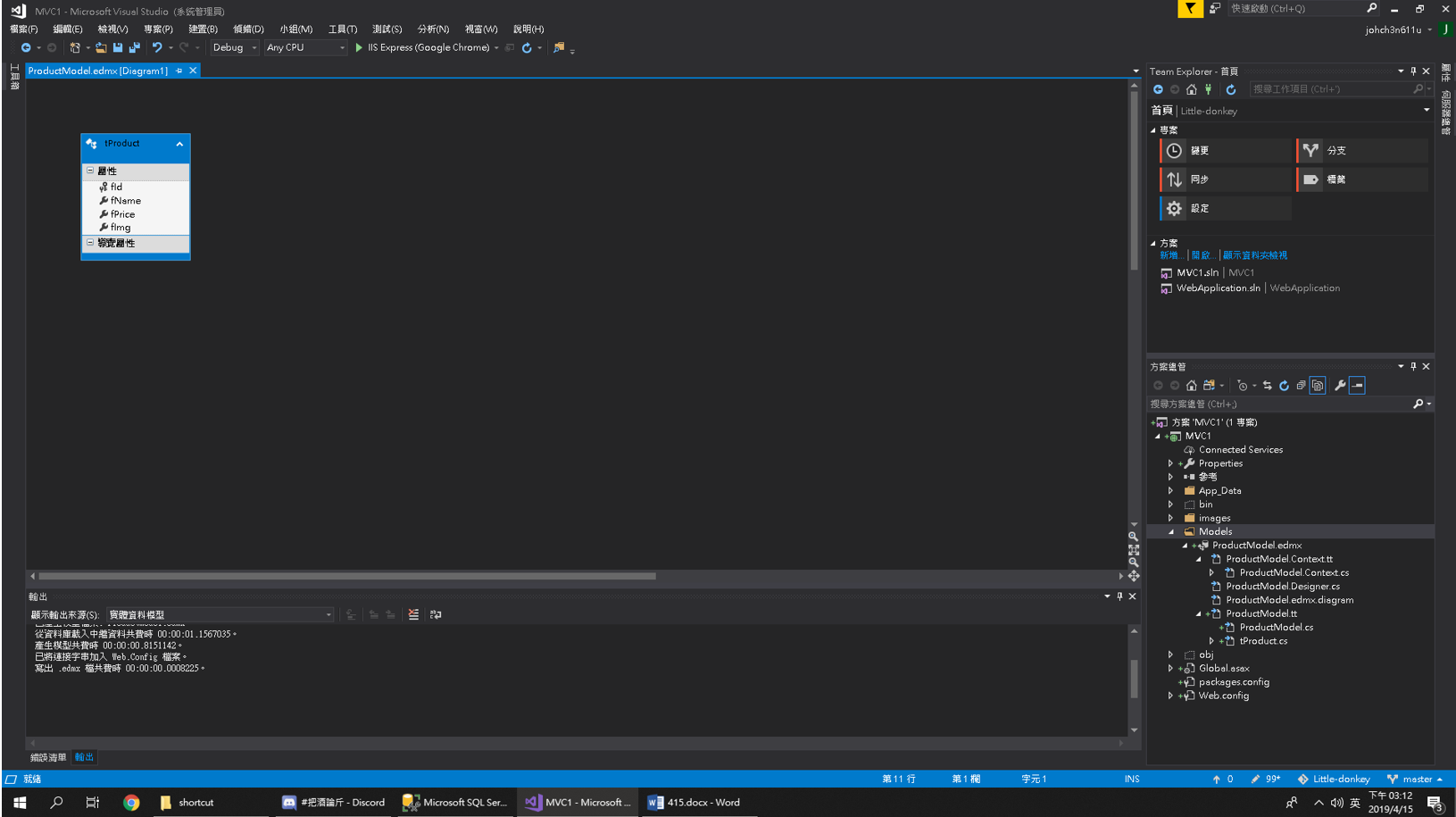

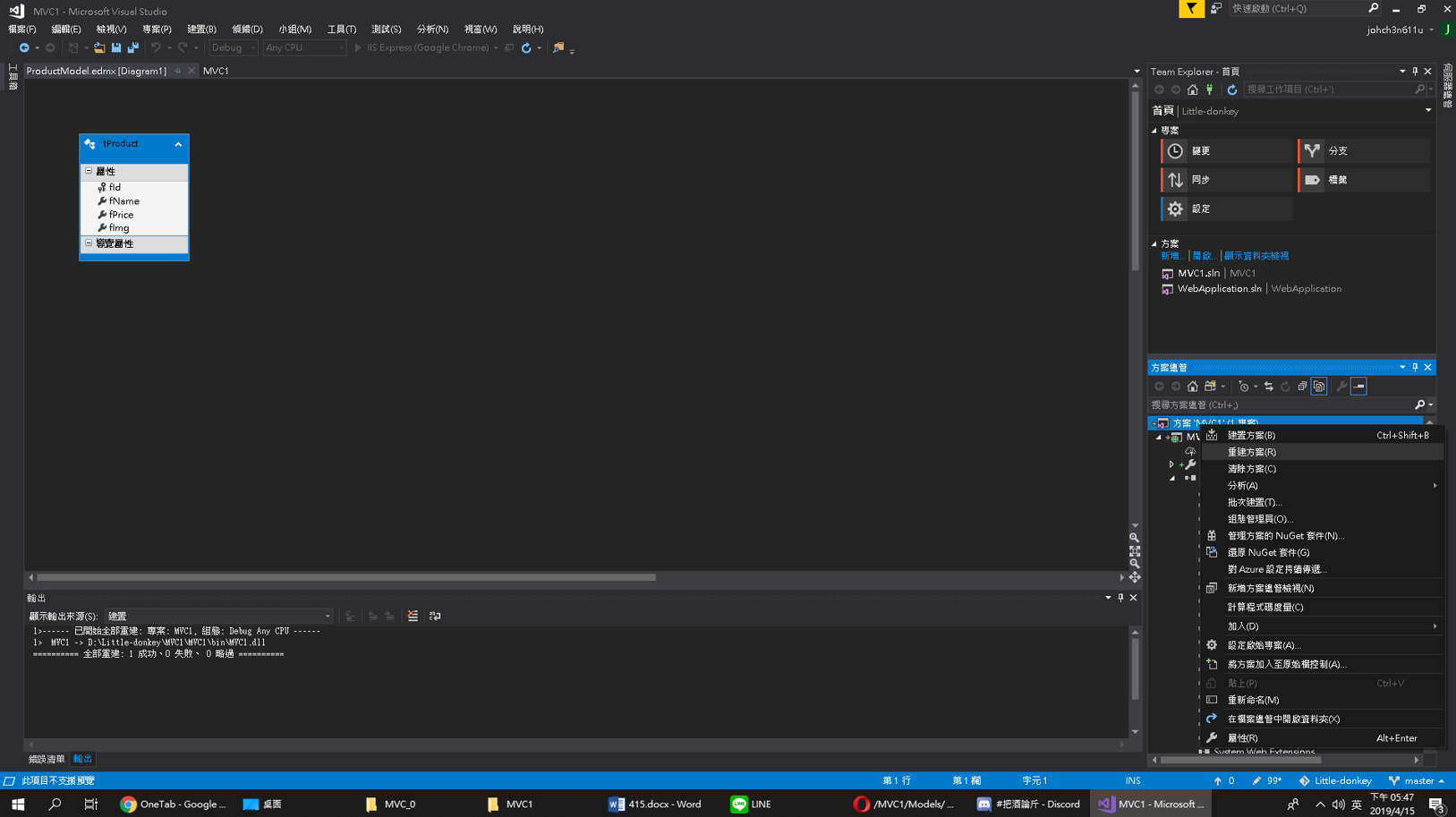

完成 ADO.net 繫結後&#x20;

![](/files/-Ld8YYzcOo_PE8jUtPpS)

![](/files/-Ld8YYzd-zODQddOqH33)

需要建置編碼

#### 題外話:&#xD;

指標

堆疊演算法

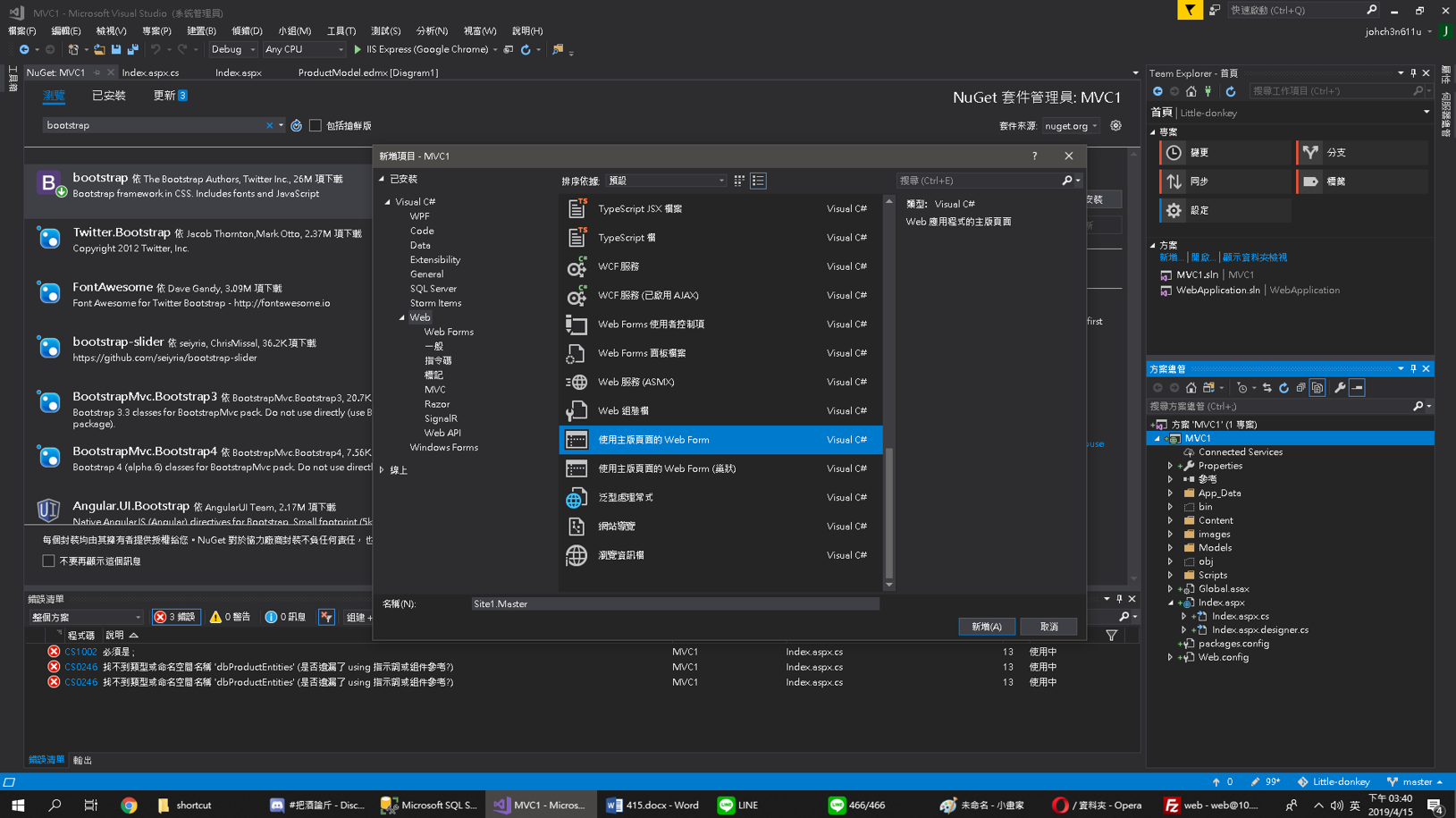

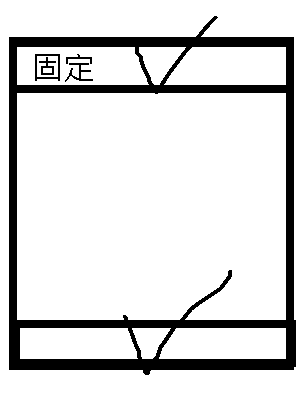

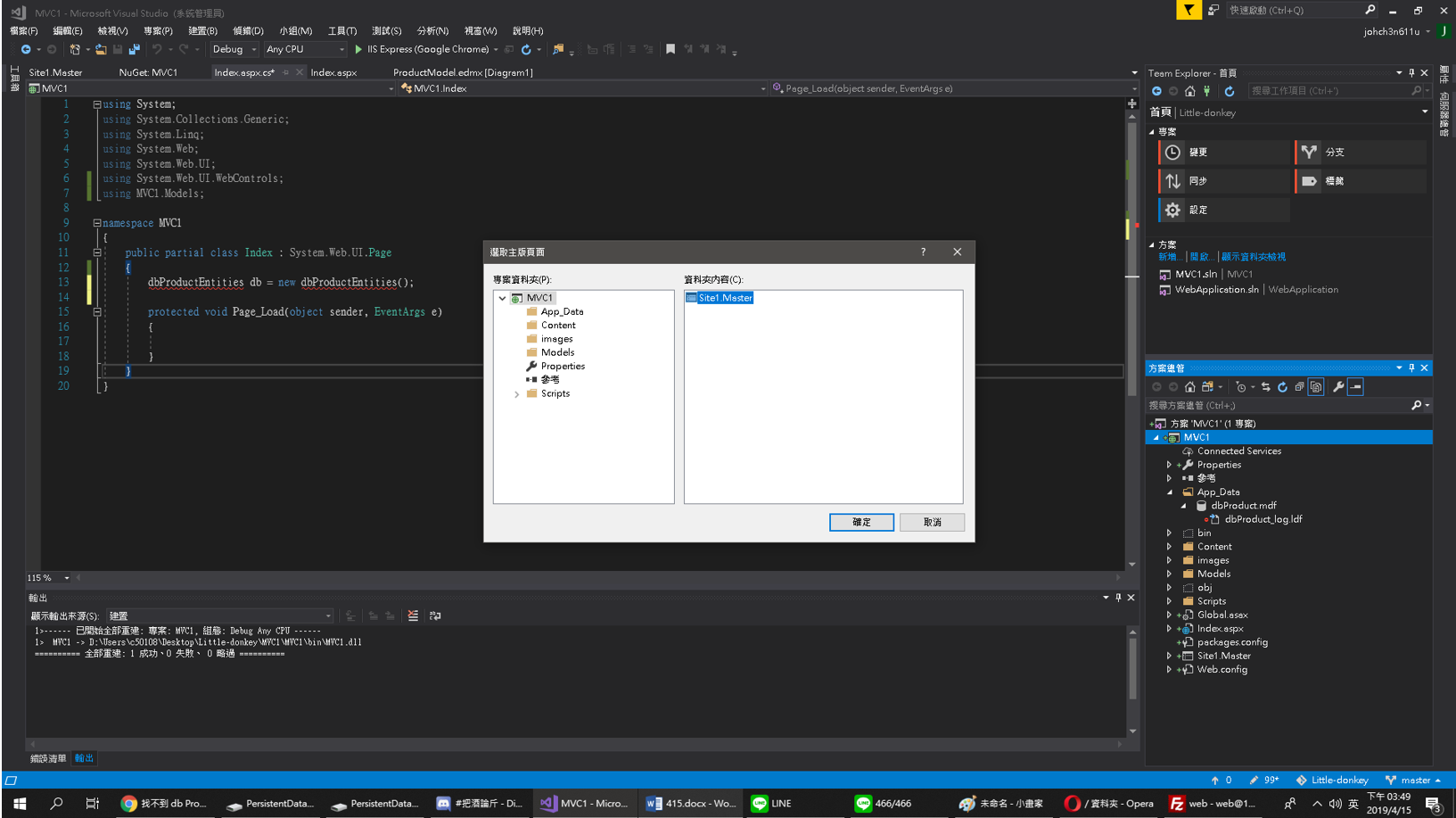

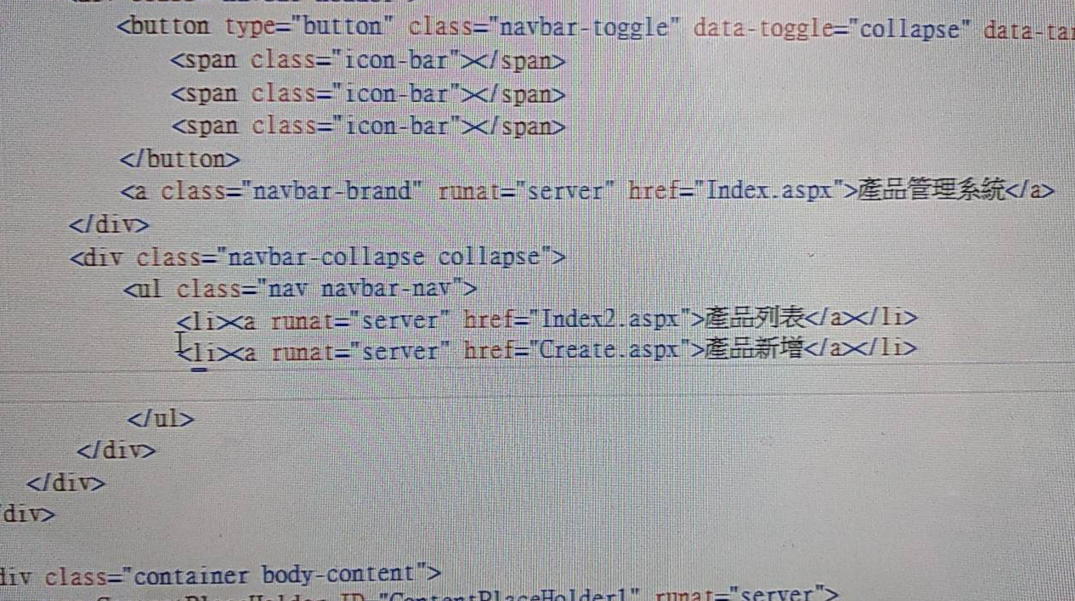

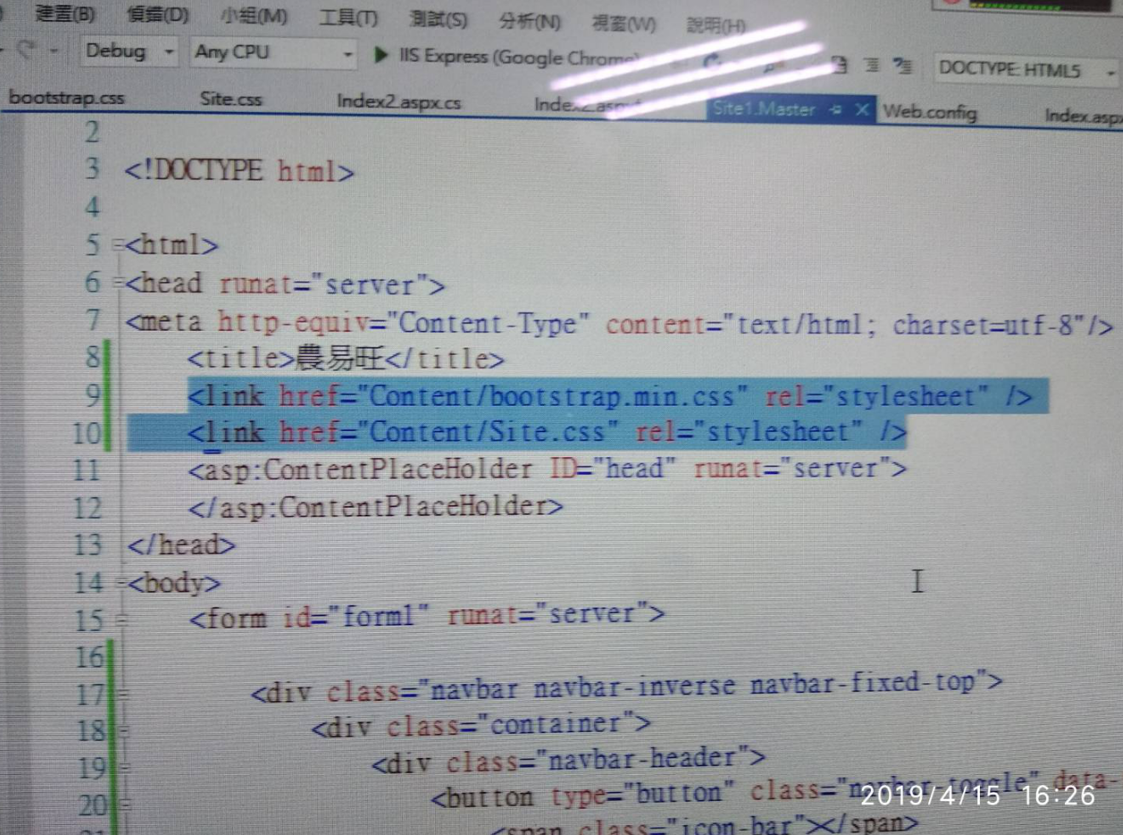

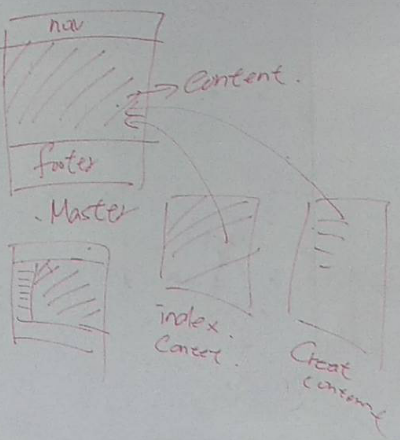

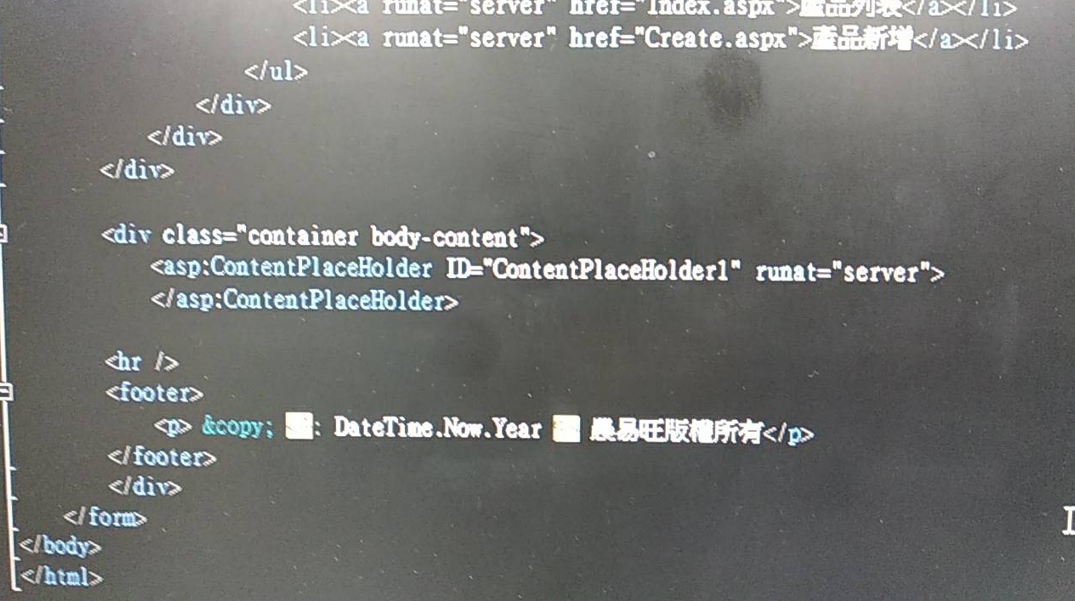

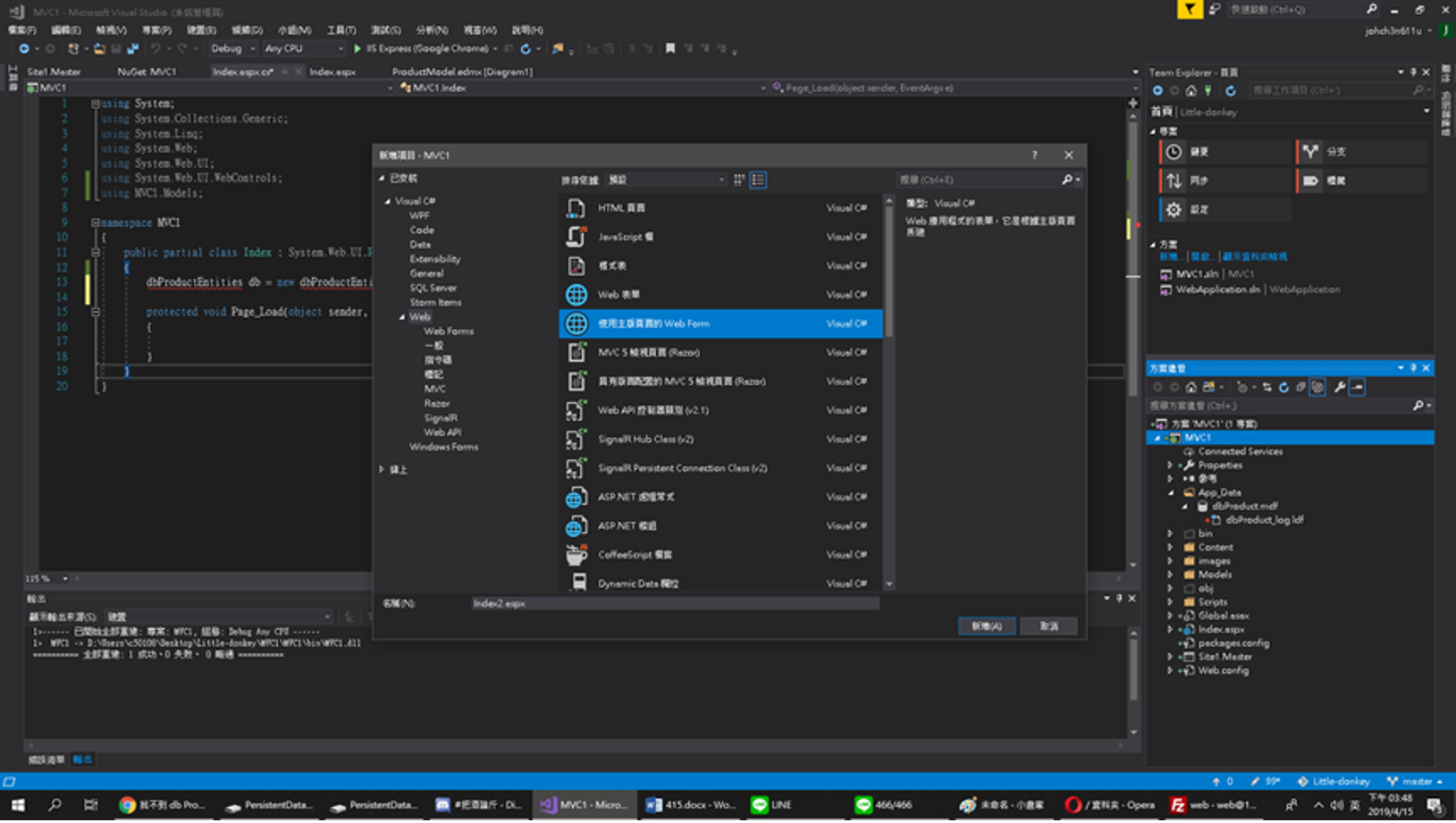

## 主板頁面概念 Contentplaceholder 控制項

![](/files/-LcVgv_5aE44Wi-5qEm9)

![](/files/-LcVgxTQ5nJ_G8CmiSpc)

![](/files/-Ld8YYzeuuzleo2wnWwF)

![](/files/-Ld8YYzg3e5XyhqhzPZB)

![](/files/-Ld8YYzfzyQqJnsExoyW)

![](/files/-Ld8YYzhpIYi63mPIpm4)

![](/files/-Ld8YYziQbBHe2E9PC1Q)

![](/files/-Ld8YYzjW6v3EUgS2R2p)

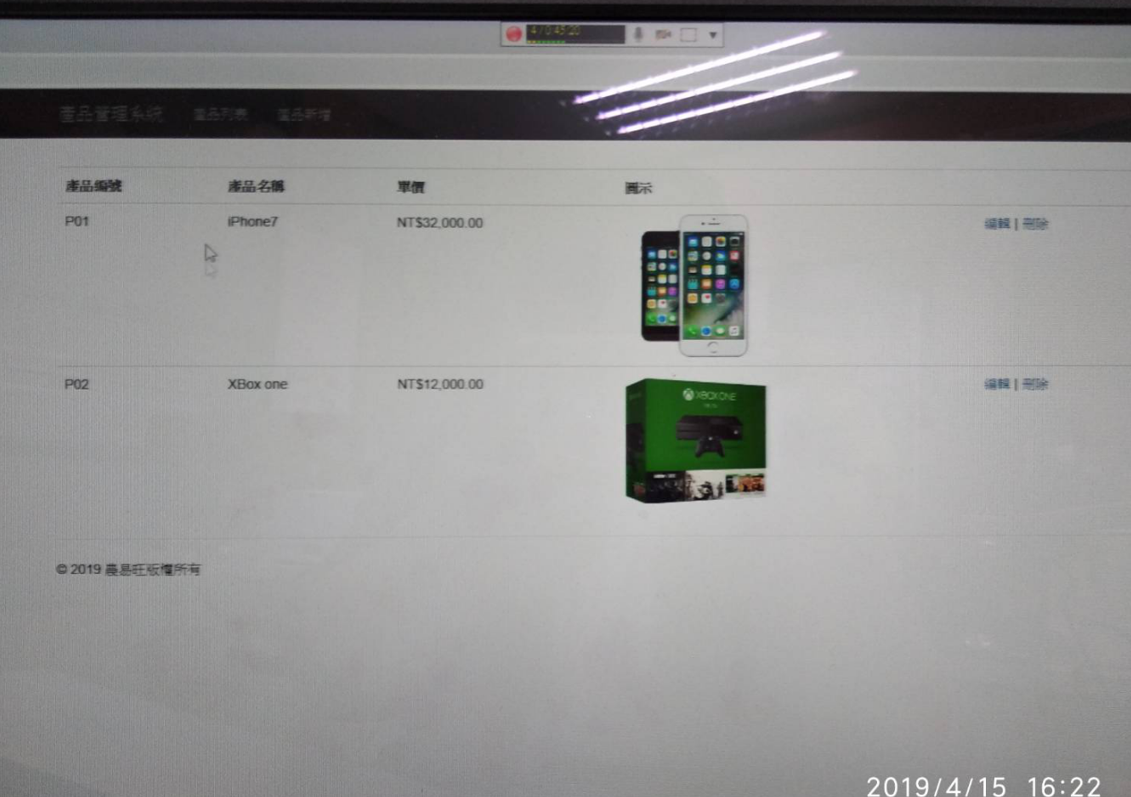

Bootstrap UI介面 3.4.1 (版本很重要不可互用)

有

![](/files/-Ld8YYzkb-4xUV3K_pU1)

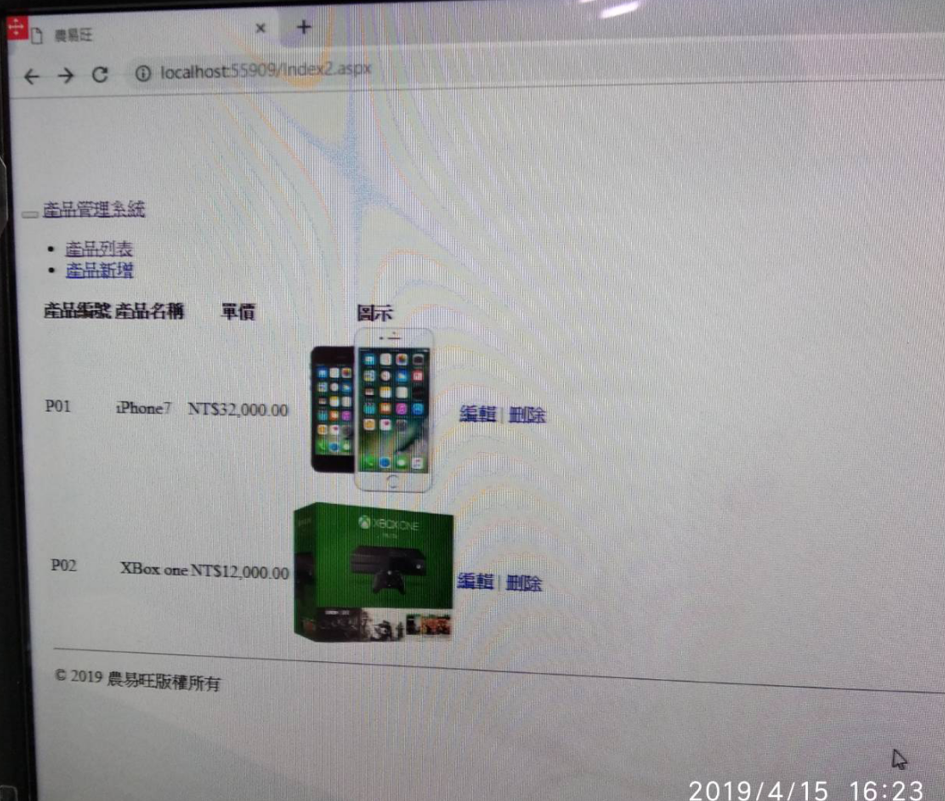

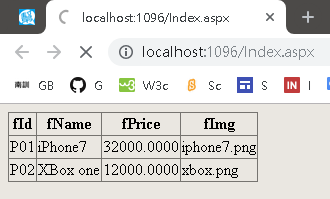

無

![](/files/-LcVhXVzARS_m015e20q)

![](/files/-Ld8YYzlP0-cpZjX1xS5)

#### Index.aspx

```
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Index.aspx.cs" Inherits="MVC1.Index" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
        <div>
            <asp:GridView ID="GridView1" runat="server"></asp:GridView>

        </div>
    </form>
</body>
</html>
###Index.aspx.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using MVC1.Models;

namespace MVC1
{
    public partial class Index : System.Web.UI.Page
    {
        dbProductEntities db = new dbProductEntities();

        protected void Page_Load(object sender, EventArgs e)
        {
            GridView1.DataSource = db.tProduct.ToList();
            GridView1.DataBind();
        }
    }
}

```

#### Index2.aspx

```
<%@ Page Title="" Language="C#" MasterPageFile="~/Site1.Master" AutoEventWireup="true" CodeBehind="Index2.aspx.cs" Inherits="MVC1.Index2" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">

</asp:Content>

<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
    <h2>產品列表</h2>
    <p>
        <a href="Create.aspx">新增產嘽品</a>
    </p>
    <asp:GridView ID="GridView1" runat="server" CssClass="table" AutoGenerateColumns="False" GridLines="None">
        <Columns>
            <asp:BoundField DataField="fId" HeaderText="產品編號" />
            <asp:BoundField DataField="fName" HeaderText="產品名稱" />
            <asp:BoundField DataField="fPrice" HeaderText="單價" DataFormatString="{0:C}" />
            <asp:ImageField DataImageUrlField="fImg" DataImageUrlFormatString="images/{0}" ControlStyle-Width="150px" HeaderText="圖示">
            <ControlStyle Width="150px"></ControlStyle>
            </asp:ImageField>

            <asp:TemplateField ShowHeader="False">
                <ItemTemplate>
                    <asp:LinkButton ID="lnkEdit" runat="server">編輯</asp:LinkButton>
                    |
                    <asp:LinkButton ID="lnkDelete" runat="server">刪除</asp:LinkButton>

                </ItemTemplate>

            </asp:TemplateField>

        </Columns>

    </asp:GridView>

</asp:Content>

```

#### Index2.aspx.cs

```
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using MVC1.Models;

namespace MVC1
{
    public partial class Index2 : System.Web.UI.Page
    {
        dbProductEntities db = new dbProductEntities();

        protected void Page_Load(object sender, EventArgs e)
        {
            GridView1.DataSource = db.tProduct.ToList();
            GridView1.DataBind();
        }
    }
}


```

#### Site1.Master

```
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using MVC1.Models;

namespace MVC1
{
    public partial class Index2 : System.Web.UI.Page
    {
        dbProductEntities db = new dbProductEntities();

        protected void Page_Load(object sender, EventArgs e)
        {
            GridView1.DataSource = db.tProduct.ToList();
            GridView1.DataBind();
        }
    }
}

```

#### Site1.Master

```
<%@ Master Language="C#" AutoEventWireup="true" CodeBehind="Site1.master.cs" Inherits="MVC1.Site1" %>

<!DOCTYPE html>

<html>
<head runat="server">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
    <title>農易旺</title>
    <link href="Content/bootstrap.min.css" rel="stylesheet" />
    <link href="Content/Site.css" rel="stylesheet" />
    <asp:ContentPlaceHolder ID="head" runat="server">
    </asp:ContentPlaceHolder>
</head>
<body>
    <form id="form1" runat="server">

        <div class="navbar navbar-inverse navbar-fixed-top">
      <div class="container">
                <div class="navbar-header">
                    <button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse">
                        <span class="icon-bar"></span>
                        <span class="icon-bar"></span>
                        <span class="icon-bar"></span>
                    </button>
                    <a class="navbar-brand" runat="server" href="Index.aspx">產品管理系統</a>
                </div>
                <div class="navbar-collapse collapse">
                    <ul class="nav navbar-nav">
                        <li><a runat="server" href="Index2.aspx">產品列表</a></li>
                        <li><a runat="server" href="Create.aspx">產品新增</a></li>
                        <li><a runat="server" href="About.aspx">關於本站</a></li>
                    </ul>
                </div>
            </div>
        </div>

        <div class="container body-content">
            <asp:ContentPlaceHolder ID="ContentPlaceHolder1" runat="server">
            </asp:ContentPlaceHolder>

        <hr />
        <footer>
            <p> &copy; <%: DateTime.Now.Year %> 農易旺版權所有</p>
        </footer>
        </div>
    </form>
</body>
</html>


```


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://johch3n611u.gitbook.io/c50108/ju-li-cheng-bei/201904/20190415-qian-duan-jqajax+json-duan.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
