2019/0419/主頁、Webform ADO.NET Entity Fromwork 增刪修實作&第五次專題報告
MVC 現在課還是很貴30小時4萬,
壓縮起來
跟不上直接抓
到時候會是一個個專案
PreMVC
WebForm 轉為
Entity Fromework 操作資料庫

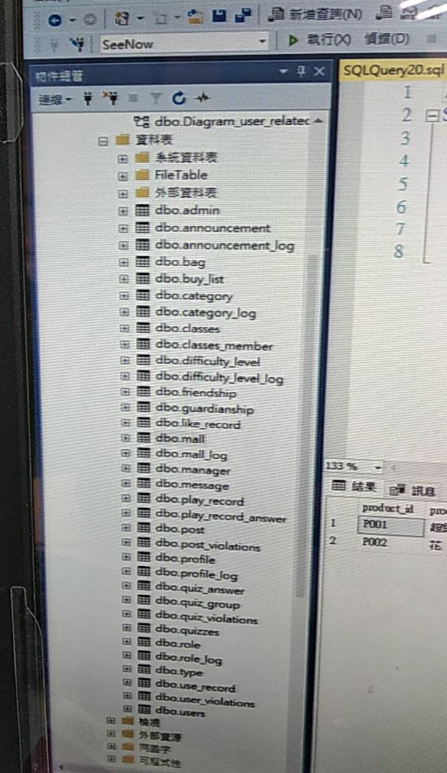

VS伺服器總管可以當作簡易的SQL Server
康內訊?

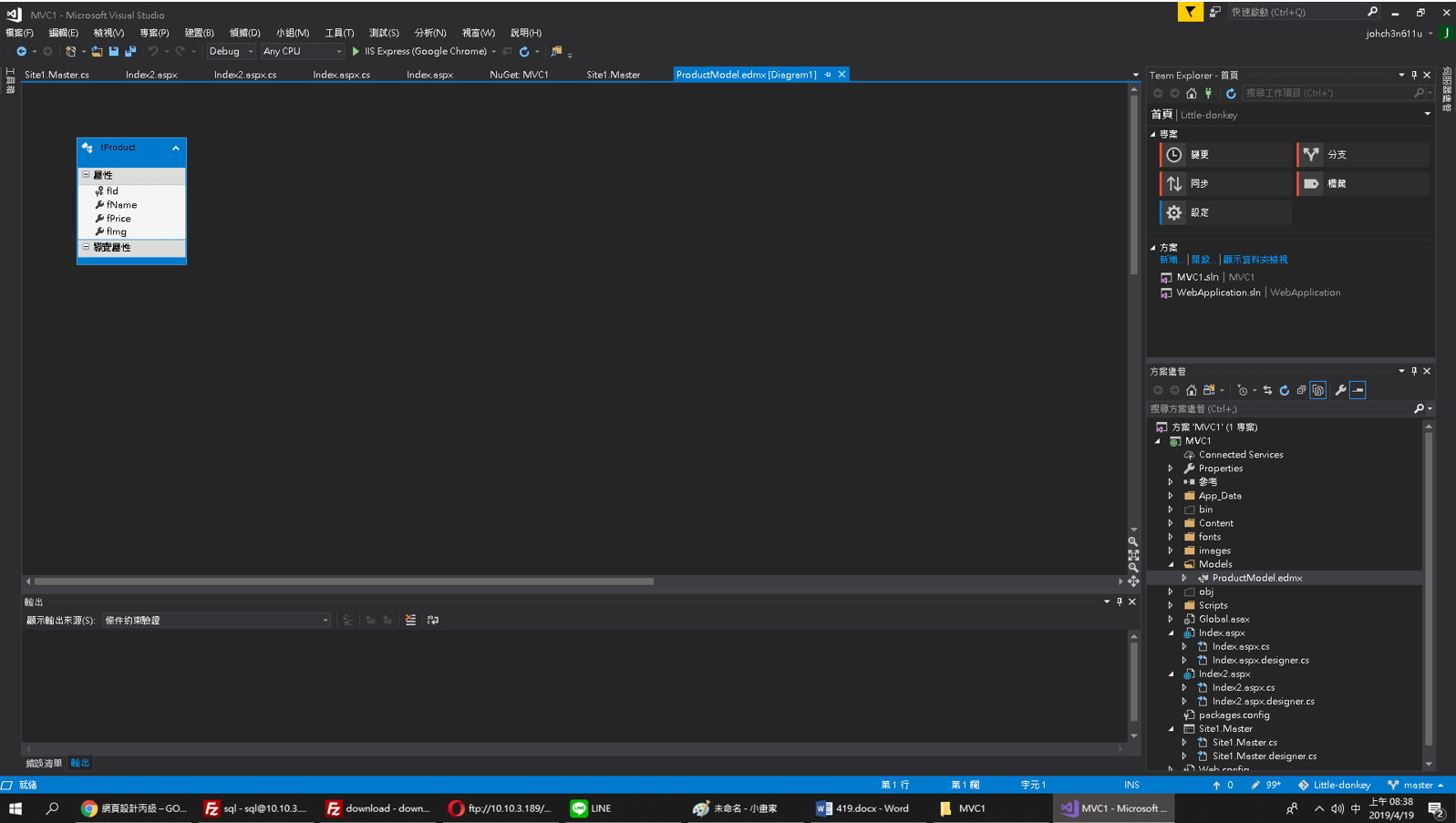

有資料庫後利用 entity framework ado.net建立模型
一個實體 屬性

軟體業 架構不變但3%會快速變動才會覺得跟不上
預響應式做準備Bootstrap 鞋帶 版本很重要
版根 3.4 4.3 第一個字為版本 第二個字是修正
所以3 跟 4是不同版本且在bs裡面3與4不相容
介面美化與響應式功能

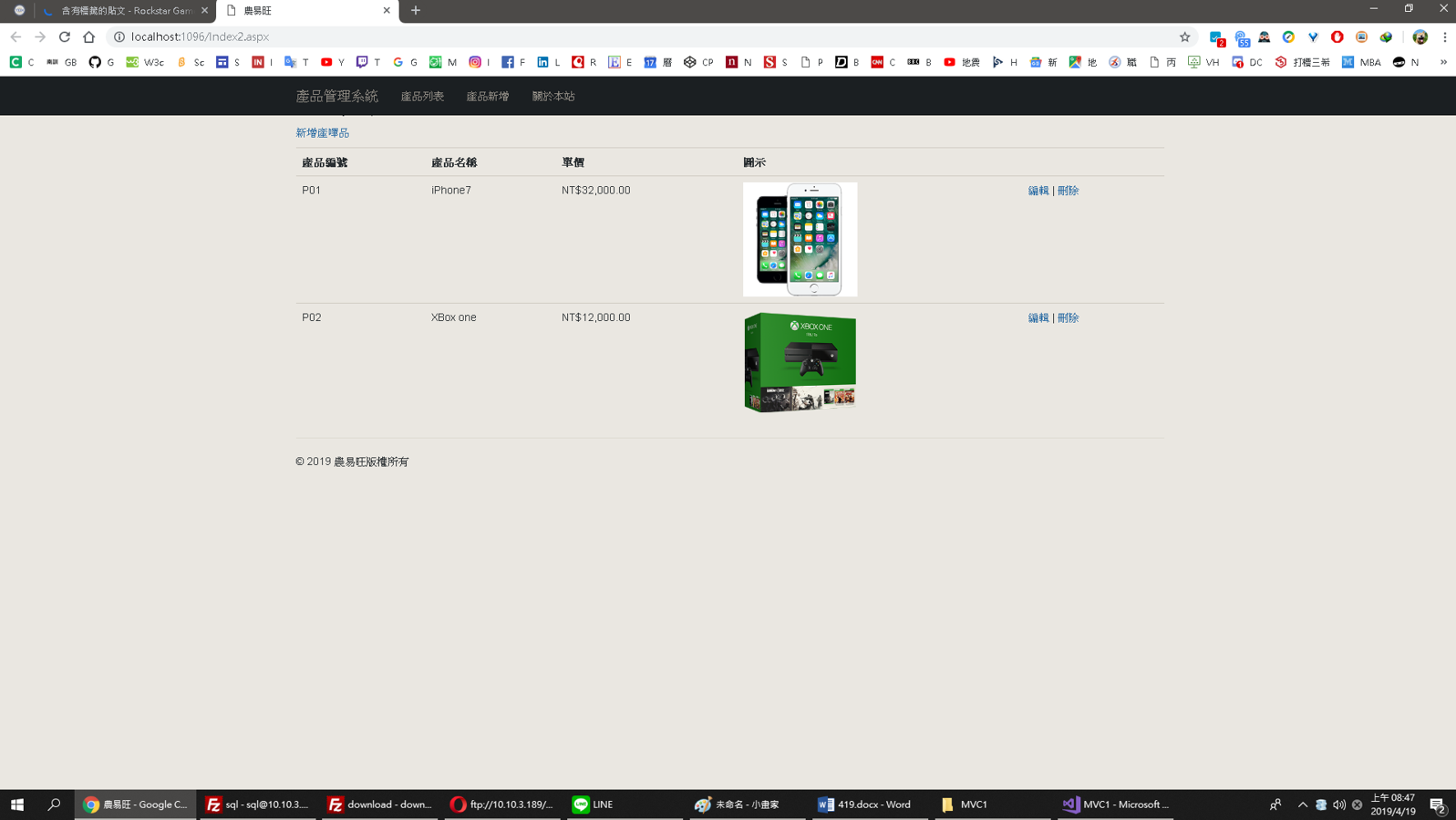

首頁Index 不使用了要使用index2因為套了主板Site.Master,
框架頁面概念
接下來補足新刪修
Gridview型態 bootstrap樣式

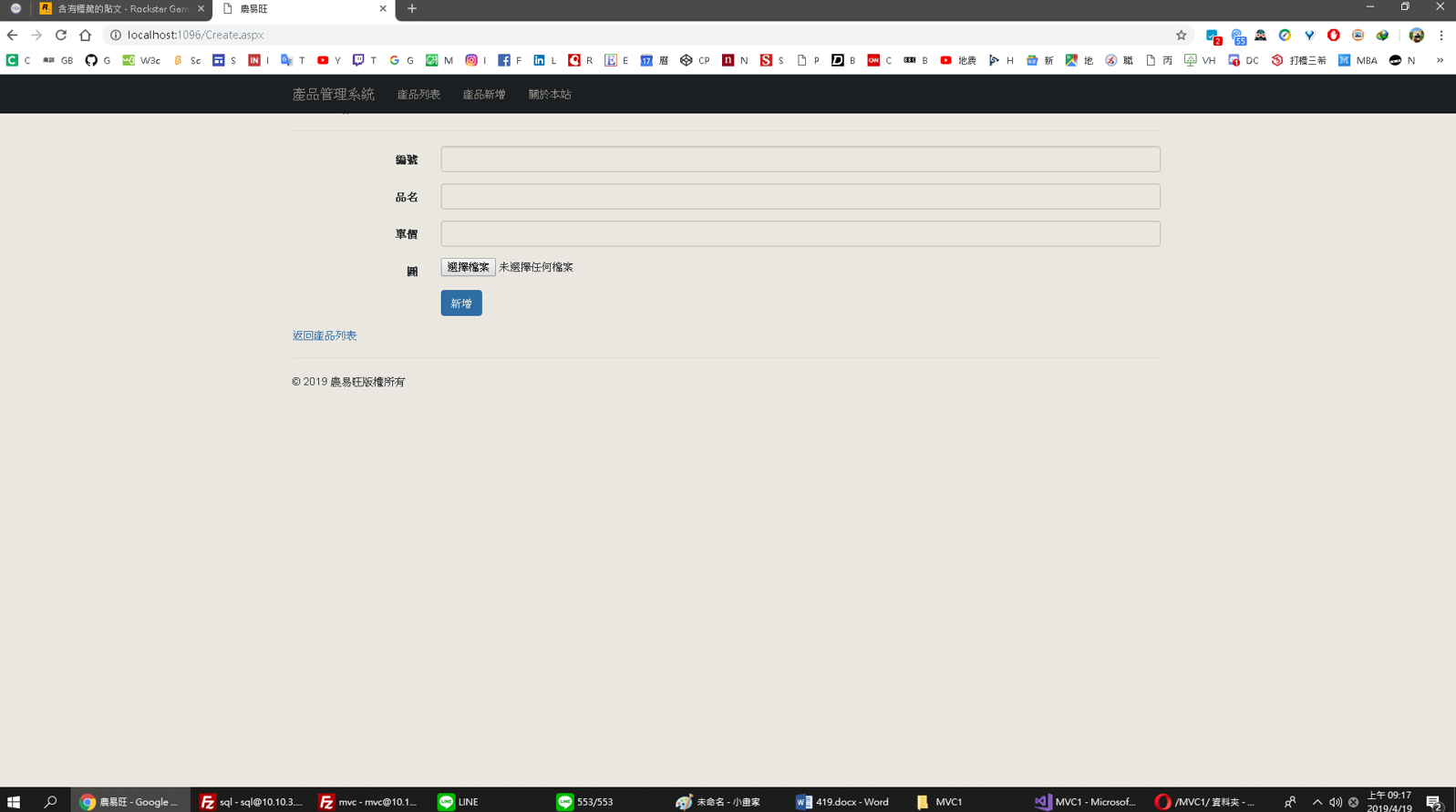

Creat 使用主板頁面的webform
<%@ Page Title="" Language="C#" MasterPageFile="~/Site1.Master" AutoEventWireup="true" CodeBehind="Create.aspx.cs" Inherits="MVC1.Create" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
</asp:Content>
自動鏈結主板
<asp:ContentPlaceHolder ID="ContentPlaceHolder1" runat="server">
</asp:ContentPlaceHolder>
畫面做得再漂亮都不一定會操作 UI
只有曾經用過的經驗或是直覺UX才能告訴你怎麼做
寫回資料庫通常
1.datasql
2.ado.net 宣告 contion …
3.MVC方式 ( MVC書裡面有
圖片資料型態複雜 先用 try 看有沒 有上傳檔案 才可以上傳
轉型態 邏輯對實體
一般來說在使用者上傳檔案後會把上傳檔案檔名處理才歸檔
圖存進伺服器 檔名存資料庫
操作entitiy fromwork
Using MVC1.Models
DbProductEntities 類別
鑄造db物件
利用entitiy fromwork 寫回去
tProduct 資料表結構寫成類別
如此可直接指定資料進去 ( 但還是要注意轉型 要相對資料型態
decimal 表現範圍比 int 多 比long大
上傳圖片2種方式 1.檔名放資料庫檔案放伺服器分開放 2.檔案值接進資料庫拿出來要用泛型轉回
Entity 建立資料庫物件 在把資料物件傳回model , 在真的寫進資料庫,重新導向index2
Try 沒發生例外時會 catch 發生例外時 回傳 lblerror 錯誤訊息 , 寫過 C#所以要編譯
<%@ Page Title="" Language="C#" MasterPageFile="~/Site1.Master" AutoEventWireup="true" CodeBehind="Create.aspx.cs" Inherits="MVC1.Create" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
<h2>產品新增</h2>
<div class="form-horizontal">
<hr />
<div class="form-group">
<label for="id" class="control-label col-md-2">編號</label>
<div class="col-md-10">
<asp:TextBox ID="txtId" runat="server" class="form-control"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="name" class="control-label col-md-2">品名</label>
<div class="col-md-10">
<asp:TextBox ID="txtName" runat="server" class="form-control"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="price" class="control-label col-md-2">單價</label>
<div class="col-md-10">
<asp:TextBox ID="txtPrice" runat="server" class="form-control" TextMode="Number"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="img" class="control-label col-md-2">圖</label>
<div class="col-md-10">
<asp:FileUpload ID="FileUpload1" runat="server" />
</div>
</div>
<div class="form-group">
<div class="col-md-offset-2 col-md-10">
<asp:Button ID="btnCreate" runat="server" Text="新增" class="btn btn-primary" OnClick="btnCreate_Click" />
<asp:Label ID="lblError" runat="server"></asp:Label>
</div>
</div>
</div>
<div>
<a href="Index2.aspx">返回產品列表</a>
</div>
</asp:Content>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using MVC1.Models;
namespace MVC1
{
public partial class Create : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
}
//按下[儲存]按鈕
protected void btnCreate_Click(object sender, EventArgs e)
{
try
{
string fileName = "";
//圖片上傳儲存
if (FileUpload1.HasFile)
{
FileUpload1.SaveAs(Server.MapPath("images/" + FileUpload1.FileName));
fileName = FileUpload1.FileName;
}
//新增資料進資料庫
dbProductEntities db = new dbProductEntities();
tProduct product = new tProduct();
product.fId = txtId.Text;
product.fName = txtName.Text;
product.fPrice = Convert.ToDecimal(txtPrice.Text);
product.fImg = fileName;
db.tProduct.Add(product);
db.SaveChanges();
Response.Redirect("Index2.aspx");
}
catch (Exception ex)
{
lblError.Text = ex.Message;
}
}
}
}

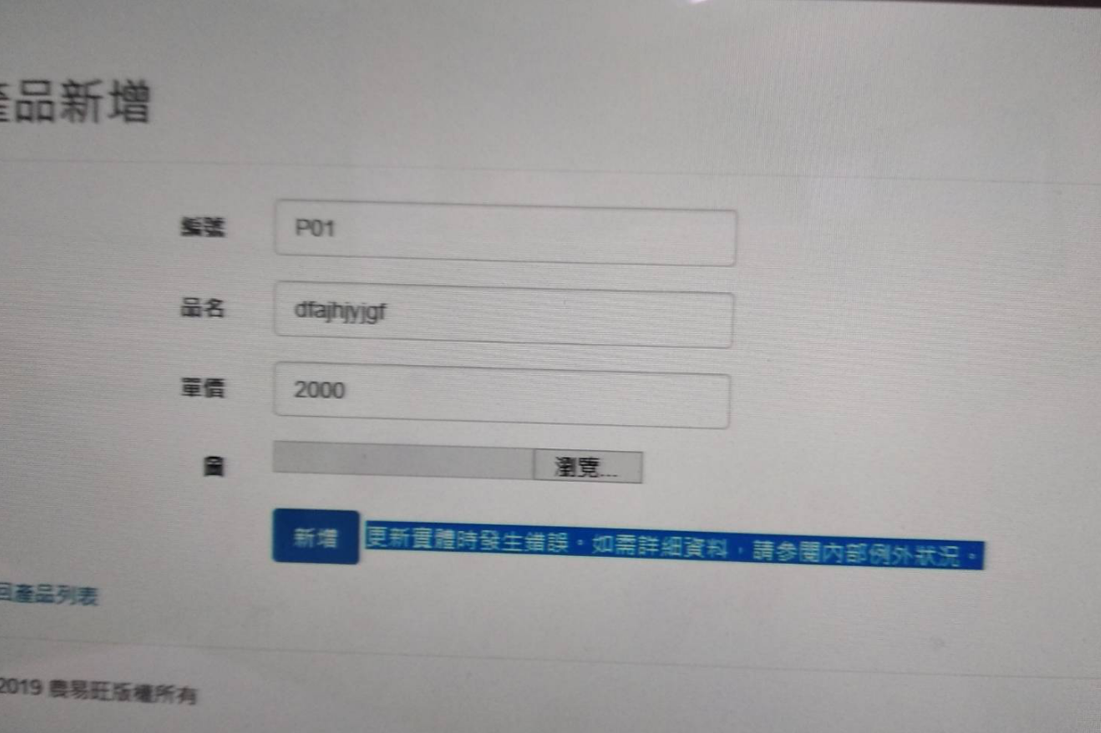

發生例外 找不到model實體

把 model 開啟 右鍵 從資料庫更新模型 ( 重建
Entity fromwork 方式 model <-> db 通常就可以
老師接下來會在mvc註記因為 到時 m v c 是跳著做的 (有講義

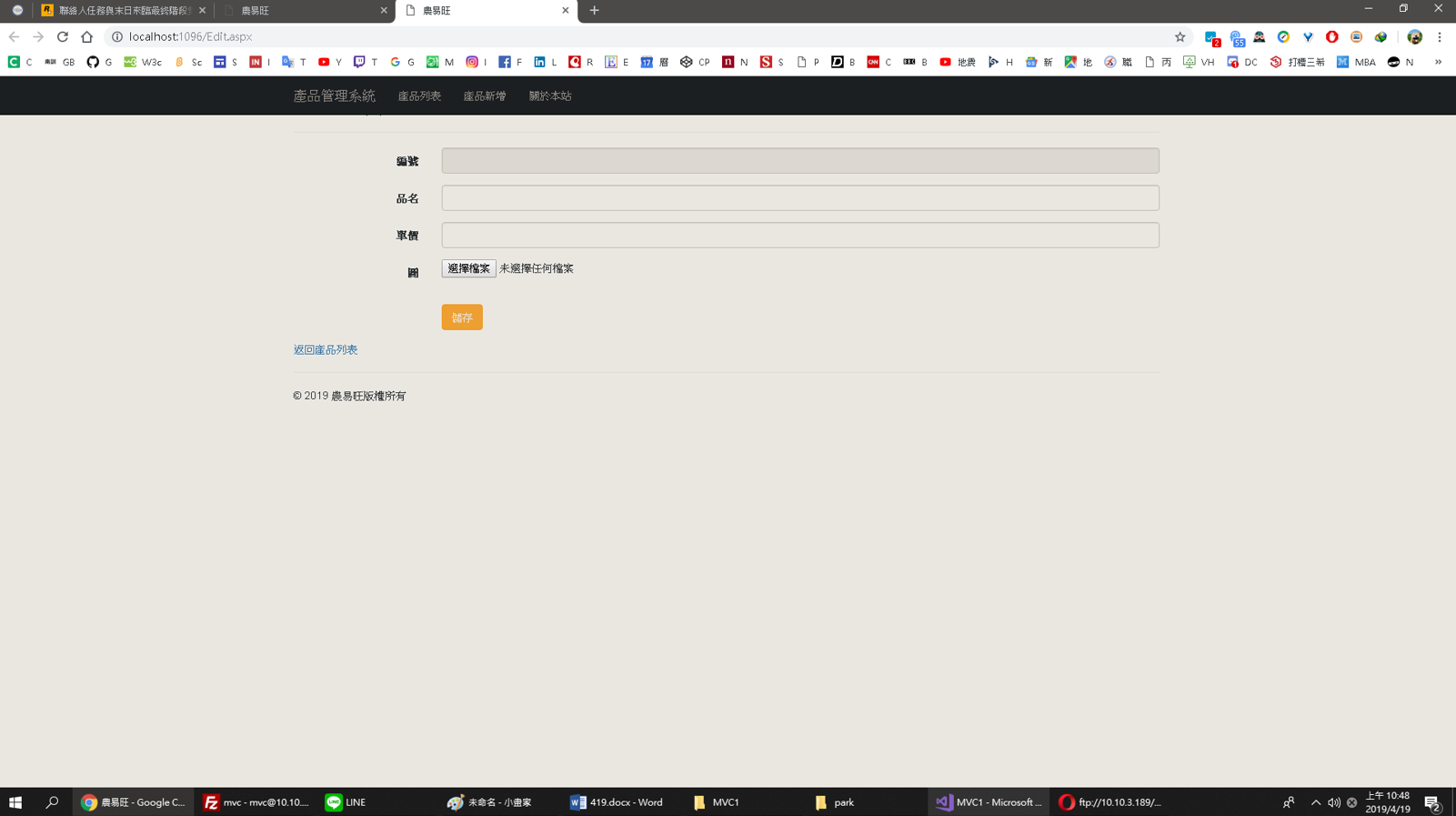

新增create頁面是個空的表單去寫出來的但
編輯edit頁面必須要有原來的值才能讓人有辦法更改
所以新增頁面後將原本的頁面內容複製過來並改為編輯相關
不能編集的內容 有兩種方式 1 直接砍掉 2 readonly
<%@ Page Title="" Language="C#" MasterPageFile="~/Site1.Master" AutoEventWireup="true" CodeBehind="Edit.aspx.cs" Inherits="MVC1.Edit" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
<h2>產品編輯</h2>
<div class="form-horizontal">
<hr />
<div class="form-group">
<label for="id" class="control-label col-md-2">編號</label>
<div class="col-md-10">
<asp:TextBox ID="txtId" runat="server" class="form-control" ReadOnly="true"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="name" class="control-label col-md-2">品名</label>
<div class="col-md-10">
<asp:TextBox ID="txtName" runat="server" class="form-control"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="price" class="control-label col-md-2">單價</label>
<div class="col-md-10">
<asp:TextBox ID="txtPrice" runat="server" class="form-control" TextMode="Number"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="img" class="control-label col-md-2">圖</label>
<div class="col-md-10">
<asp:FileUpload ID="FileUpload1" runat="server" />
</div>
<div class="col-md-10">
<asp:Image ID="Image1" runat="server" />
<asp:Label ID="lblShowImg" runat="server"></asp:Label>
</div>
</div>
<div class="form-group">
<div class="col-md-offset-2 col-md-10">
<asp:Button ID="btnSave" runat="server" Text="儲存" class="btn btn-warnning" />
</div>
</div>
</div>
<div>
<a href="Index2.aspx">返回產品列表</a>
</div>
</asp:Content>

介面弄好後重點是要怎樣把資料讀過來?
必須要先給產品編號去要產品資料
回到index2將編輯扭下commandname 判斷 編輯或刪除
Commamdargument=帶值去後端
databydingas????dafqwke 資料繫結??
<asp:LinkButton ID="lnkEdit" runat="server" CommandName="Edit" CommandArgument='<%# Eval("fId") %>'>編輯</asp:LinkButton>
在index2新增 onrowcommand 並到後製程式碼寫邏輯,
<asp:GridView ID="GridView1" runat="server" CssClass="table" AutoGenerateColumns="False" GridLines="None" OnRowCommand="GridView1_RowCommand">
接收前面資料編號,在去弄成url轉值去edit頁面,就能讓 edit頁面知道要編輯哪一筆資料
protected void GridView1_RowCommand(object sender, GridViewCommandEventArgs e)
{
string fId = e.CommandArgument.ToString();
if(e.CommandName=="Edit")
{
Response.Redirect("Edit.aspx?fId="+ fId);
}
}
在回到 edit 後製程式碼,建立db物件,在load時就要讀產品資料出來,
所以 字串變數去取得網址 request.querystring裡面的
產品代號附加欄位aspx?後面的
protected void Page_Load(object sender, EventArgs e)
{
//由url取得產品代號
string fId = Request.QueryString["fId"].ToString();
Linq 架構寫法操作資料庫
Lambda 為 Linq的擴充寫法 類似相對 linq vs lambda = js vs jq
//Lambda
var product = db.tProduct.Where(m => m.fId == fId).FirstOrDefault();
新版的c#類似像js可以用以下方式
Var 資料庫.資料表.方法(參數).否則()
方法where
(參數)=(變數資料表 => 變數資料表.id == 資料表.id)
=>箭頭 ->指表 ©
改動了 img 變成 label ????
好像是要偷吃步不知道吃啥
現在步驟是 把model資料塞進 要顯示出來的前面的html的id的變數
Model抓出來的值餵給變數欄位

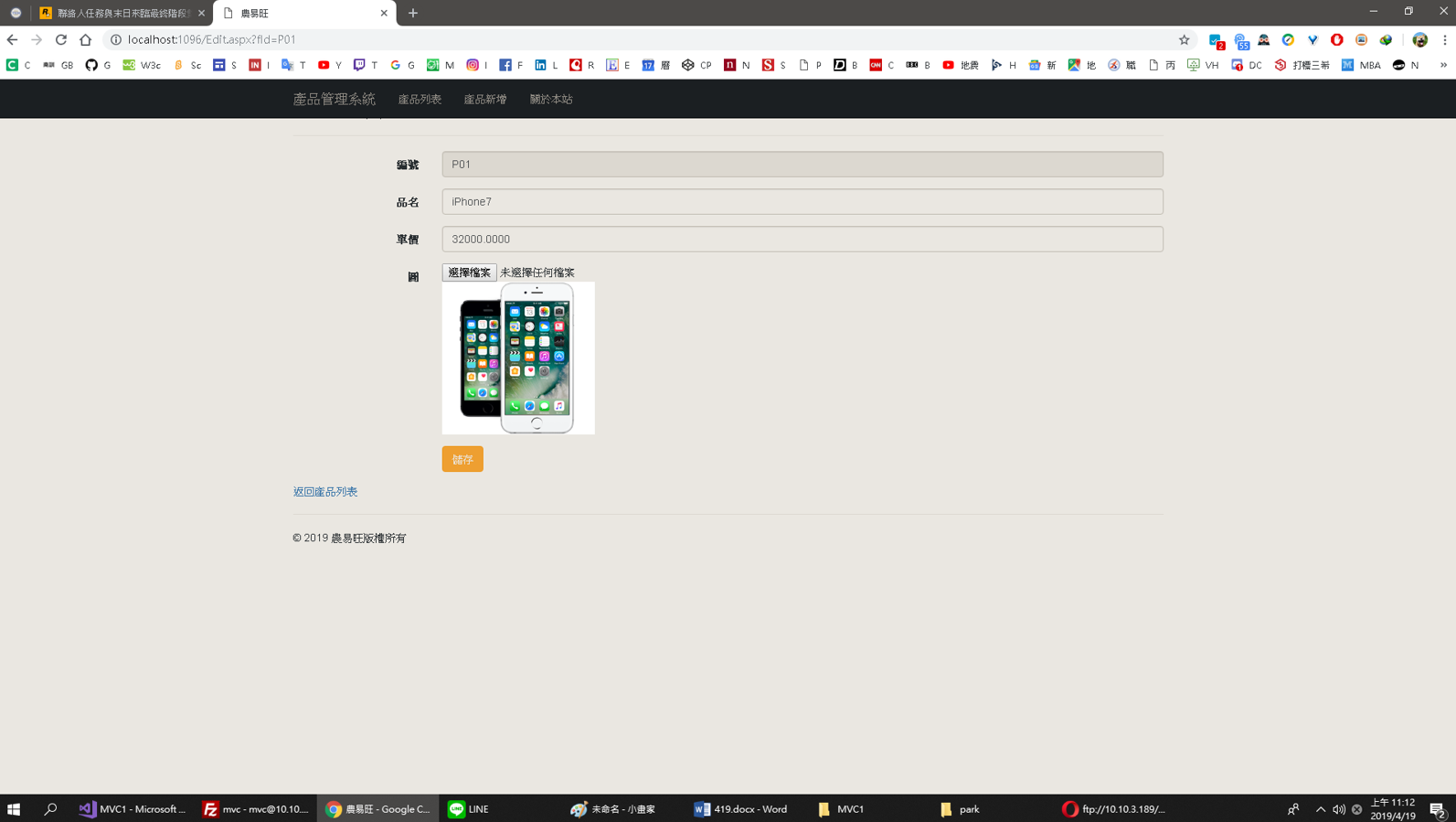

然後就能測試顯示了

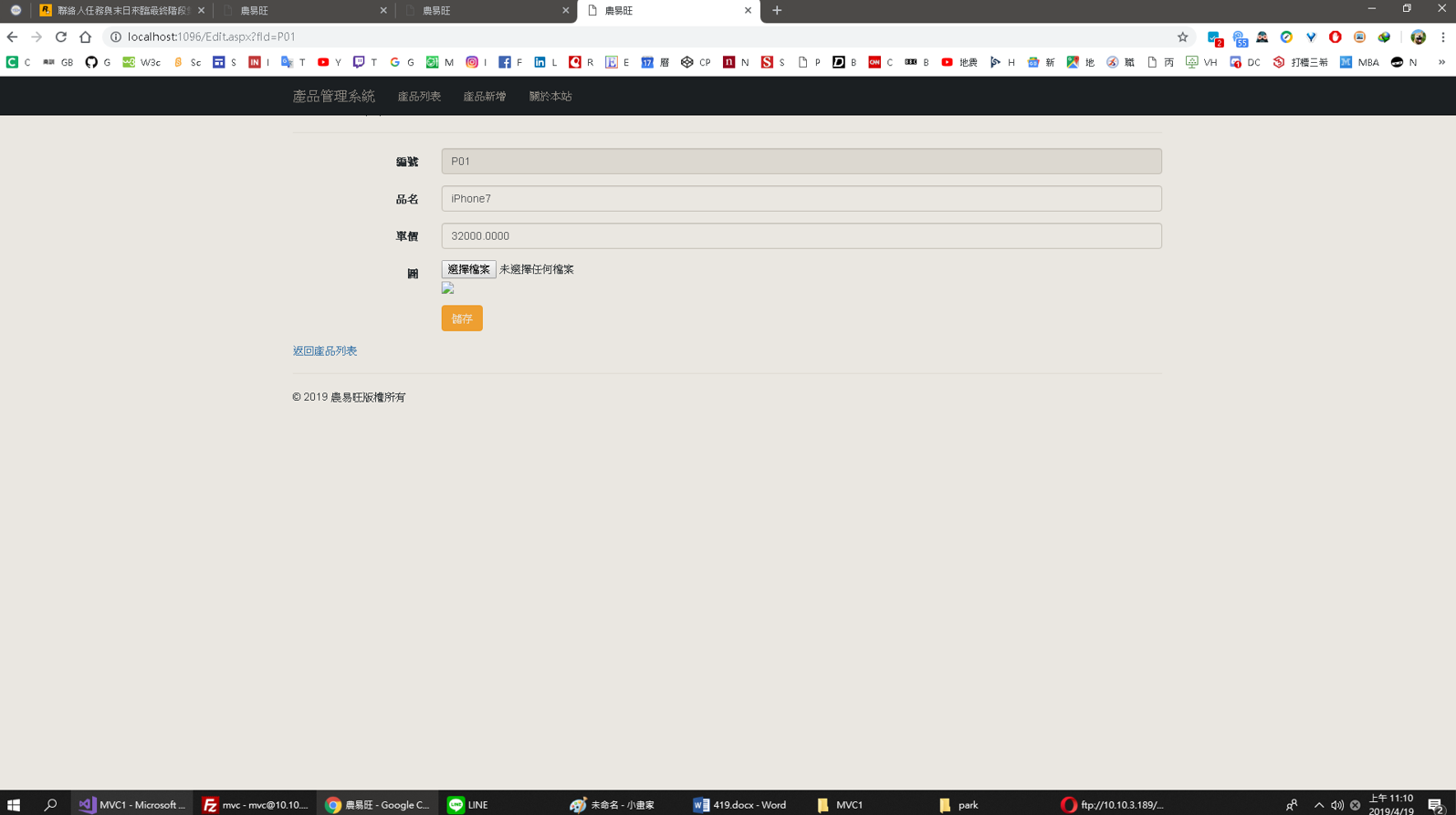

圖片檔案如果有問題很多時候是路徑問題 結果是單引號錯
<%@ Page Title="" Language="C#" MasterPageFile="~/Site1.Master" AutoEventWireup="true" CodeBehind="Edit.aspx.cs" Inherits="MVC1.Edit" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
<h2>產品編輯</h2>
<div class="form-horizontal">
<hr />
<div class="form-group">
<label for="id" class="control-label col-md-2">編號</label>
<div class="col-md-10">
<asp:TextBox ID="txtId" runat="server" class="form-control" ReadOnly="true"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="name" class="control-label col-md-2">品名</label>
<div class="col-md-10">
<asp:TextBox ID="txtName" runat="server" class="form-control"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="price" class="control-label col-md-2">單價</label>
<div class="col-md-10">
<asp:TextBox ID="txtPrice" runat="server" class="form-control" TextMode="Number"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="img" class="control-label col-md-2">圖</label>
<div class="col-md-10">
<asp:FileUpload ID="FileUpload1" runat="server" />
</div>
<div class="col-md-10">
<asp:Label ID="lblShowImg" runat="server"></asp:Label>
</div>
</div>
<div class="form-group">
<div class="col-md-offset-2 col-md-10">
<asp:Button ID="btnSave" runat="server" Text="儲存" class="btn btn-warning" />
</div>
</div>
</div>
<div>
<a href="Index2.aspx">返回產品列表</a>
</div>
</asp:Content>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
//00-4-1 using MVC1.Models
using MVC1.Models;
namespace MVC1
{
public partial class Edit : System.Web.UI.Page
{
//00-4-2 使用Entity建立DB物件
dbProductEntities db = new dbProductEntities();
protected void Page_Load(object sender, EventArgs e)
{
//00-4-3 讀出要修改的產品資料並放入表單欄位中
//由url取得產品代號
string fId = Request.QueryString["fId"].ToString();
//Lambda
var product = db.tProduct.Where(m => m.fId == fId).FirstOrDefault();
txtId.Text = product.fId;
txtName.Text = product.fName;
txtPrice.Text = product.fPrice.ToString();
lblShowImg.Text = "<img src='images/"+product.fImg+"' width='200' />";
}
}
}

題外話:
Signalr
按下儲存按鈕後要更新資料庫內容
圖片要多寫一個if判斷有沒有要更新圖,
(( 沒有要更新也要取原來的資料出來改回去
跟新增很像所以複製新增的來改
這邊省時間都沒有加一些驗證判斷實務上必須要
操作方式跟剛剛新增的方式幾乎一樣
按鈕commamdname
傳產品代號
刪除 model裡面的 資料
在savechanges 刪除資料庫
然後更新girdview更新佔存資料庫
重新databind
實務上跳視窗確認要不要刪除
Onclientclick=return confirm(‘您確定要刪除嗎?’)
重複寫的地方值接獨立出一個不用回傳值的函數 loadData() 內聚力高偶合力低
大瑕疵
除了刪除資料庫資料外
檔案也要刪除 ( 圖片檔 )
抓取檔案路徑然後根據id刪除
Var 那個老師選擇妥協把db往上放 我猜是新功能觸發的問題
資料無法更新 page load 要加上 !IsPostBack 不然就會post back
所以怎麼取都取到舊的值
如果上傳新的圖片檔案刪除要把既有的圖片檔案刪除
資料刪除可以刪掉但是 onrowdeleting 會觸發的函數
忽略了 commandname = delete 一定會觸發上述
方式為 刪掉 onrowdeleting 改掉 commandname = killme
因為之前 edit是在別頁觸發的好像就沒這個問題

前端 edit ( delete 也在 edit內
<%@ Page Title="" Language="C#" MasterPageFile="~/Site1.Master" AutoEventWireup="true" CodeBehind="Edit.aspx.cs" Inherits="MVC1.Edit" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
<h2>產品編輯</h2>
<div class="form-horizontal">
<hr />
<div class="form-group">
<label for="id" class="control-label col-md-2">編號</label>
<div class="col-md-10">
<asp:TextBox ID="txtId" runat="server" class="form-control" ReadOnly="true"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="name" class="control-label col-md-2">品名</label>
<div class="col-md-10">
<asp:TextBox ID="txtName" runat="server" class="form-control"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="price" class="control-label col-md-2">單價</label>
<div class="col-md-10">
<asp:TextBox ID="txtPrice" runat="server" class="form-control" TextMode="Number"></asp:TextBox>
</div>
</div>
<div class="form-group">
<label for="img" class="control-label col-md-2">圖</label>
<div class="col-md-10">
<asp:FileUpload ID="FileUpload1" runat="server" />
</div>
div class="col-md-10">
<asp:Label ID="lblShowImg" runat="server"></asp:Label>
</div>
</div>
<div class="form-group">
<div class="col-md-offset-2 col-md-10">
<asp:Button ID="btnSave" runat="server" Text="儲存" class="btn btn-warning" OnClick="btnSave_Click" />
</div>
</div>
</div>
<div>
<a href="Index2.aspx">返回產品列表</a>
</div>
</asp:Content>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
//00-4-1 using MVC1.Models
using MVC1.Models;
namespace MVC1
{
public partial class Edit : System.Web.UI.Page
{
//00-4-2 使用Entity建立DB物件
dbProductEntities db = new dbProductEntities();
protected void Page_Load(object sender, EventArgs e)
{
//00-4-3 讀出要修改的產品資料並放入表單欄位中
if (!IsPostBack)
{
//由url取得產品代號
string fId = Request.QueryString["fId"].ToString();
//Lambda
var product = db.tProduct.Where(m => m.fId == fId).FirstOrDefault();
txtId.Text = product.fId;
txtName.Text = product.fName;
txtPrice.Text = product.fPrice.ToString();
lblShowImg.Text = "<img src='images/" + product.fImg + "' width='200' />";
}
}
//按 [儲存] 鈕時執行
protected void btnSave_Click(object sender, EventArgs e)
{
//dbProductEntities db = new dbProductEntities();
string fileName, fId;
fId = txtId.Text;
var product = db.tProduct.Where(m => m.fId == fId).FirstOrDefault();
fileName = product.fImg;
//圖片上傳儲存
if (FileUpload1.HasFile)
{
FileUpload1.SaveAs(Server.MapPath("images/" + FileUpload1.FileName));
fileName = FileUpload1.FileName;
}
//00-3-4 使用Entity Framework新增資料
product.fName = txtName.Text;
product.fPrice = Convert.ToDecimal(txtPrice.Text);
product.fImg = fileName;//如果使用者沒上傳就用原來的檔名
db.SaveChanges();//回寫結果
Response.Redirect("Index2.aspx");
}
}
}
//00-1 利用Entity Framework建立Model(DB First)
//00-1-1 建立dbProduct.mdb資料庫Model
// 在Models上按右鍵,選擇加入,新增項目,資料,ADO.NET實體資料模型,名稱輸入"ProductModel",按新增
// 來自資料庫的EF Designer
// 連接dbProduct.mdf資料庫,連線名稱不修改,按下一步按鈕
// 選擇Entity Framework 6.x, 按下一步按鈕
// 資料表勾選"tProuct", 按完成鈕
// 若跳出詢問方法按確定鈕
//00-1-2 在專案上按右鍵,建置

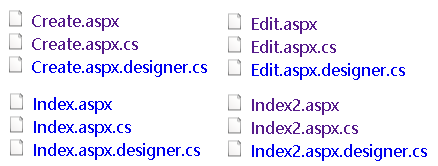

//00-2 撰寫Index2.aspx的後置程式碼
//00-2-1 using MVC1.Models
//00-2-2 使用Entity建立DB物件
//00-2-3 將讀出的資料餵給GridView
//00-2-4 撰寫GridView裡的按鈕被按下時所要做的事
//00-3 撰寫Create.aspx的後置程式碼
//00-3-1 using MVC1.Models
//00-3-2 撰寫"儲存"鈕被按下時要做的事
//00-3-3 使用Entity建立DB物件
//00-3-4 使用Entity Framework新增資料
//00-4 撰寫Edit.aspx的後置程式碼
//00-4-1 using MVC1.Models
//00-4-2 使用Entity建立DB物件
//00-4-3 讀出要修改的產品資料並放入表單欄位中
//00-4-4 撰寫"儲存"鈕被按下時要做的事
//00-4-5 使用Entity Framework更新資料

已經時做資料庫與資料上傳頁面串接
更改了一些上次覺得有問題的ermodel內容
Remodel 增加留言板 然後 檢舉修改 讚的部分修改
老師說明
問題很難問?
工科論文 因為做出來了怎問?
管理面很好問
你們有沒有考慮到什麼?

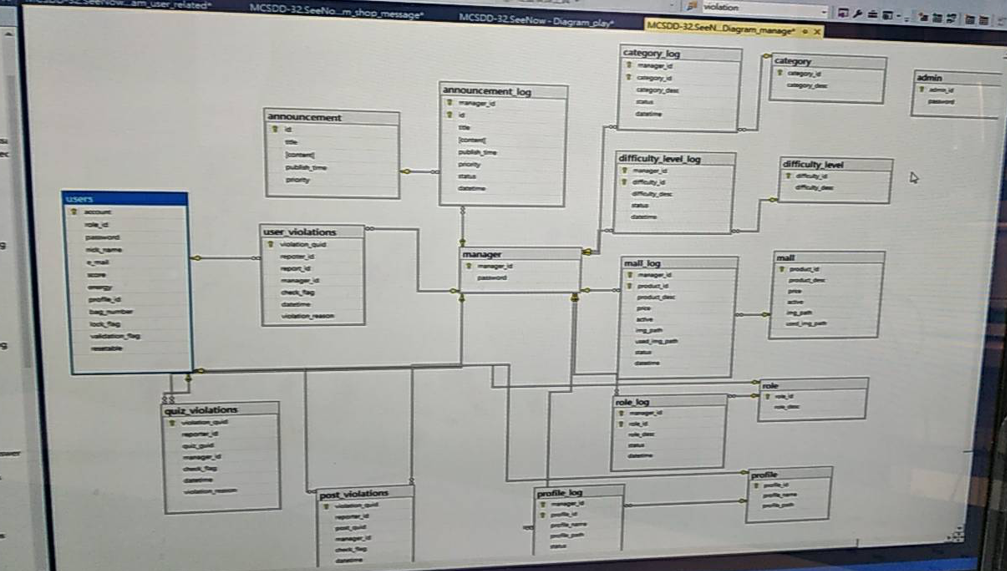

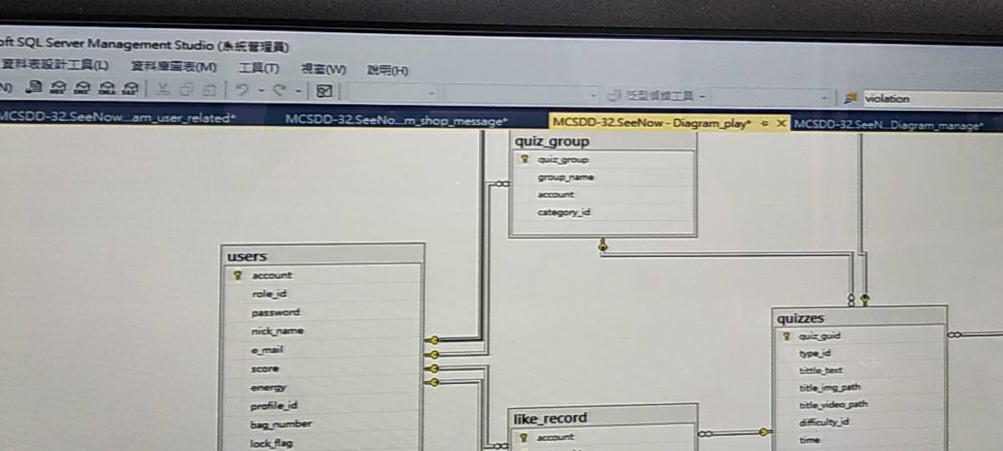

Member 為何用 email當作主key
可是erd是錯的
Pwd長度 varchar 4000 雜湊
雜湊完不知道本來密碼那怎辦
直接給新的密碼
log 修改紀錄也要存表
違規分為三種
用使用者 ( 包含管理者 商城與寄信 違規與修改紀錄log
個人會員信息
分為四個關聯 共通資料庫
很多連遊玩實際記錄也會記錄下來



以下組別因為大雷雨所以 …
( 雷聲大雨點小所以就不深入記錄了

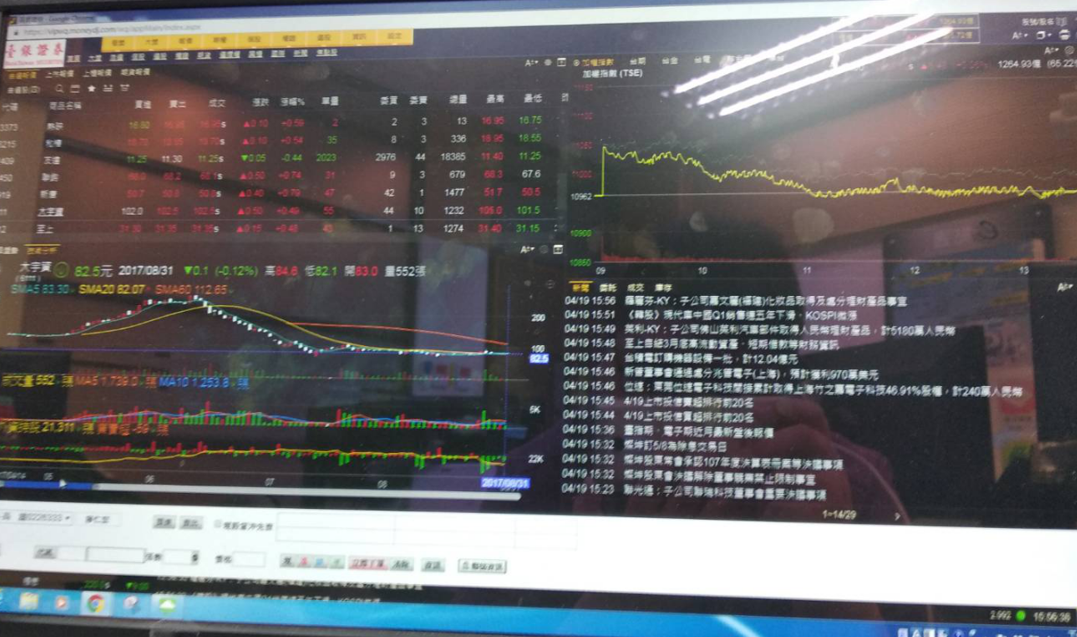

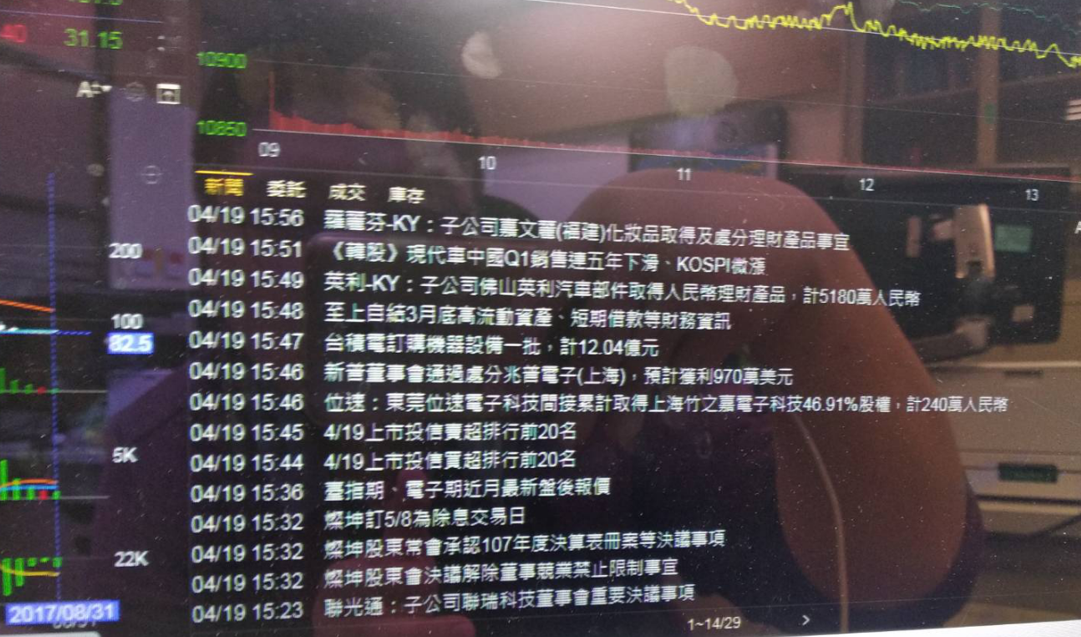

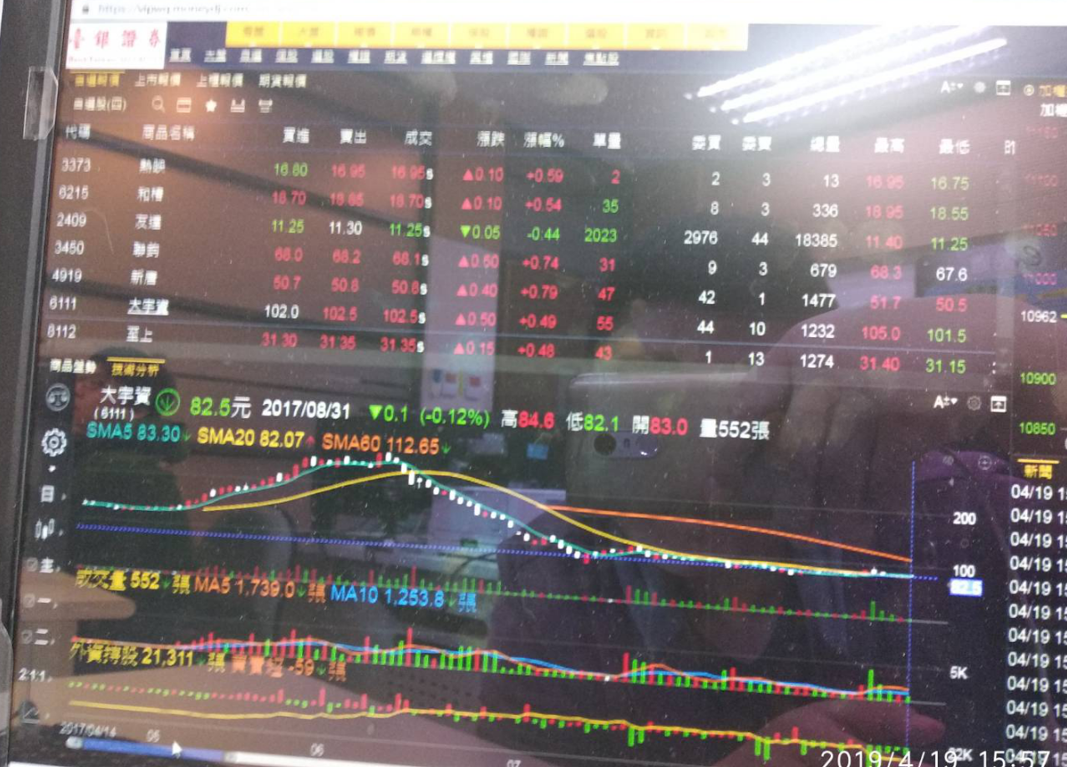

本益比 越小越好
本夢比
Dos 時帶 很多遊戲都是 大宇做的
台灣的盤都是外資盤操盤寡ˇ
佔獨占性競爭等等
看來要去看經濟學
市場機制 颱風沒來菜還是很貴 中華電信 寡占市場 不賺錢打趴對手 價格歌喉戰
個體撿到便宜 但總體經濟降低 市場不活絡 消費者剩餘 市場GG
拿不出綜效 只會持續一年
EX劉兆玄 企業主都知道但有利益都不講
